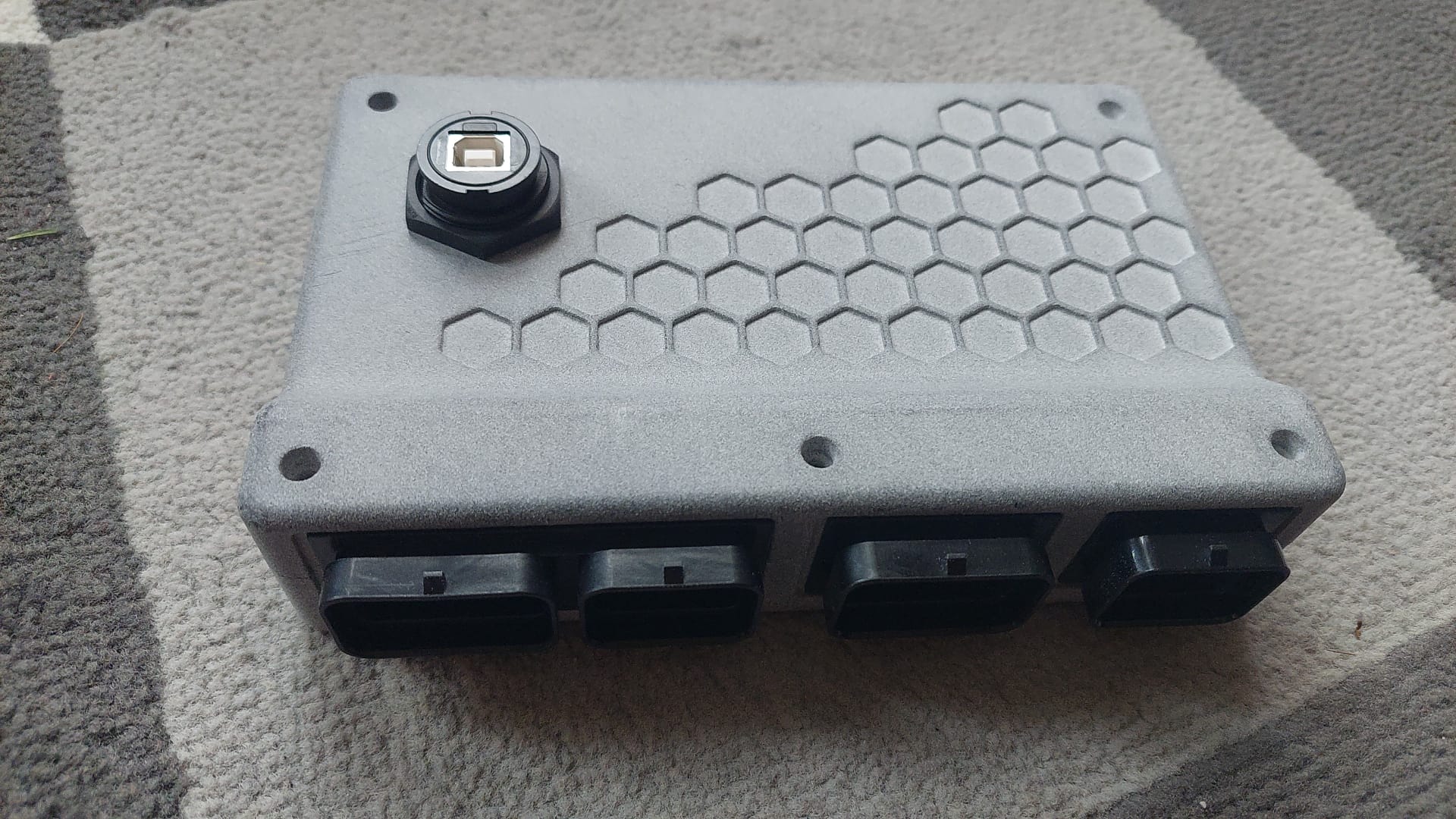

rusEFI Huge¶

Previously known as 8chan

💲Gets yours at rusEFI store💲

rusEFI Quick Start

⏩ Interactive Pinout ⏪

Schematics rev c

iBom rev C

• 12 HighZ injector channels
• 12 logic level coil control
• 4 H-bridges
• 3 VR inputs
• 5 Hall inputs
• Dual channel knock input
• Dual CANbus
• Dual on-board WBO controller

bluetooth_jdy 115200 alpha8 1234

Parts¶

Changelog¶

rev C¶

general availability!

rev A¶

Early prototype - it was even larger!
