1993 Mazda Protege¶

Protege BG ECU pinout description

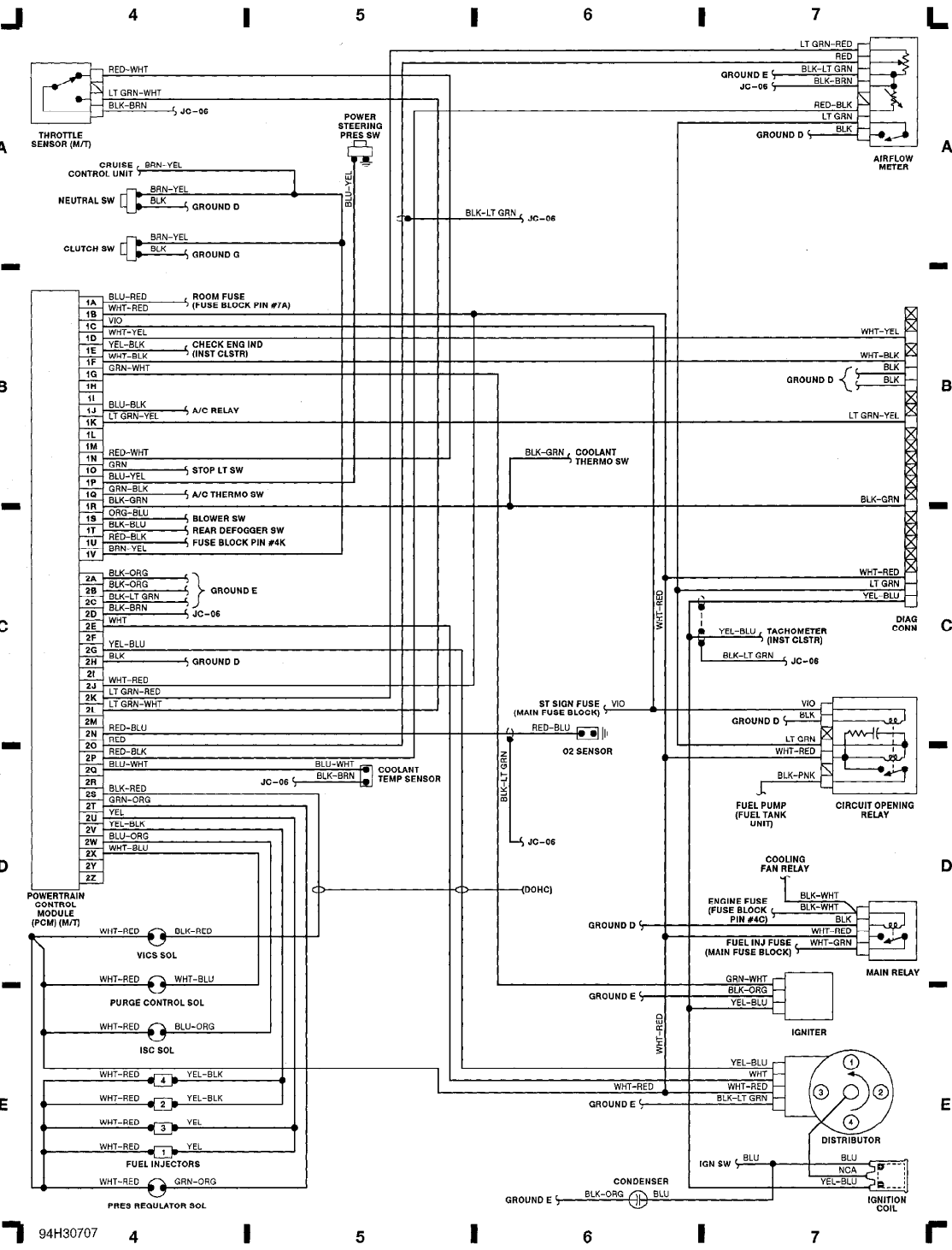

Engine Diagram M/T

Wiring Diagram

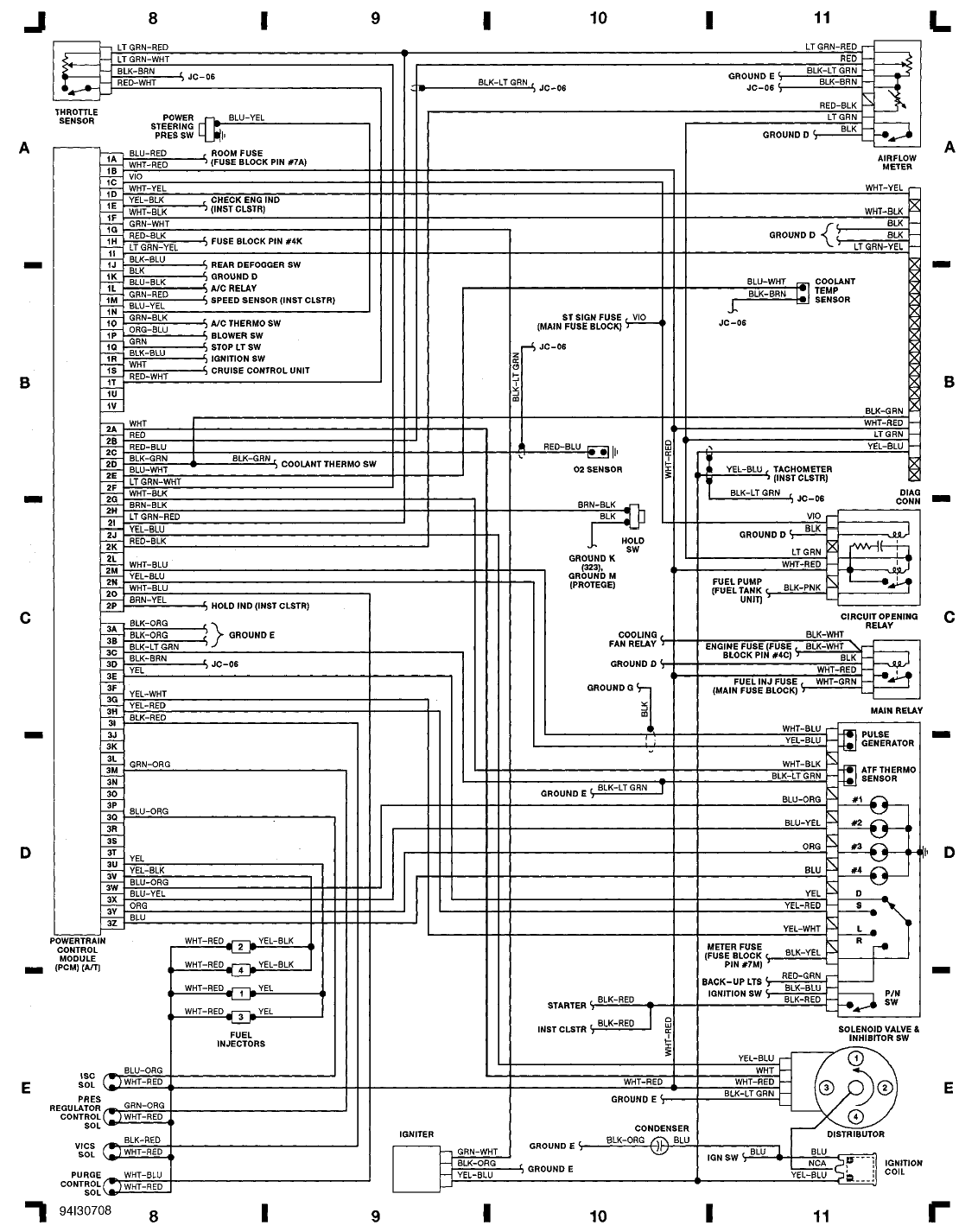

Engine Diagram A/T

Wiring Diagram

Pinout
