GY6_139QMB.h File Reference

Functions
void	setGy6139qmbDefaultEngineConfiguration ()

Function Documentation

setGy6139qmbDefaultEngineConfiguration()

void setGy6139qmbDefaultEngineConfiguration

(

)

We treat the trigger as 8-1 toothed wheel

Definition at line 18 of file GY6_139QMB.cpp.

                                              {
    engineConfiguration->rpmHardLimit = 9000;
    engineConfiguration->cranking.rpm = 1100;
    setTargetRpmCurve(2000);

    engineConfiguration->globalTriggerAngleOffset = Gy6139_globalTriggerAngleOffset;
    engineConfiguration->displacement = 0.072; // 72cc
    engineConfiguration->cylindersCount = 1;
    setCrankOperationMode();

    engineConfiguration->firingOrder = FO_1;

    /**
     * We treat the trigger as 8-1 toothed wheel
     */
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
    engineConfiguration->trigger.customTotalToothCount = 8;
    engineConfiguration->trigger.customSkippedToothCount = 1;

    // set injection_mode 1
    engineConfiguration->injectionMode = IM_SEQUENTIAL;
    // set ignition_mode 0
    engineConfiguration->ignitionMode = IM_ONE_COIL;
}

Referenced by applyEngineType().

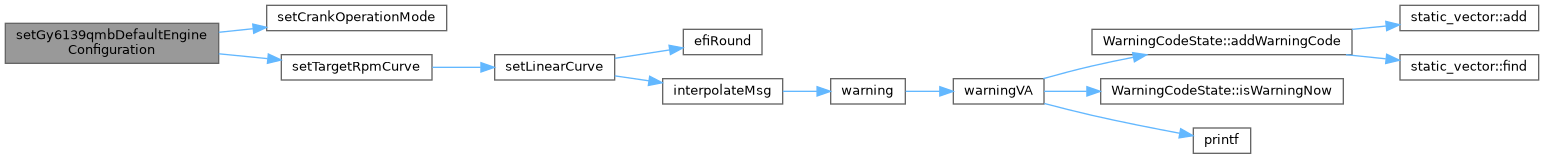

Here is the call graph for this function:

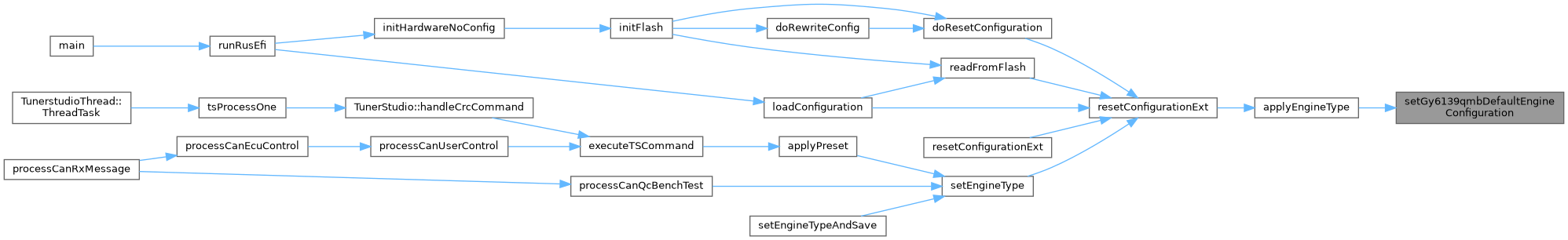

Here is the caller graph for this function:

Go to the source code of this file.
