bmw_m73_mre.cpp File Reference

Functions
void	setEngineBMW_M73_microRusEfi ()

Function Documentation

setEngineBMW_M73_microRusEfi()

void setEngineBMW_M73_microRusEfi

(

)

Definition at line 67 of file bmw_m73_mre.cpp.

                                    {
     m73engine();
    // 13641435991 injector
    engineConfiguration->injector.flow = 180; // cc/min, who knows if this number is real - no good source of info

    strcpy(engineConfiguration->vehicleName, "microRusEFIx2");

    engineConfiguration->globalTriggerAngleOffset = 90;
    engineConfiguration->cylindersCount = 6;
    engineConfiguration->displacement = 5.4 / 2;
    engineConfiguration->firingOrder = FO_1_5_3_6_2_4;

    engineConfiguration->ignitionMode = IM_ONE_COIL;

    engineConfiguration->injectionMode = IM_BATCH;

    engineConfiguration->etb.pFactor = 2.00;
    engineConfiguration->etb.iFactor = 0.35;

    // 22 - AN Temp 4, orange wire
    engineConfiguration->startStopButtonPin = Gpio::A3;

#if (BOARD_TLE8888_COUNT > 0)
    // "43 - GP Out 4"
    engineConfiguration->starterControlPin = Gpio::TLE8888_PIN_24;
#endif /* BOARD_TLE8888_COUNT */


    // set_analog_input_pin pps PA7
    // EFI_ADC_7: "31 - AN volt 3" - PA7
    engineConfiguration->throttlePedalPositionAdcChannel = EFI_ADC_7;

    engineConfiguration->enableVerboseCanTx = true;

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_60_2;

    engineConfiguration->tpsMin = 891;
    engineConfiguration->tpsMax = 177;
}

Referenced by applyEngineType().

Here is the call graph for this function:

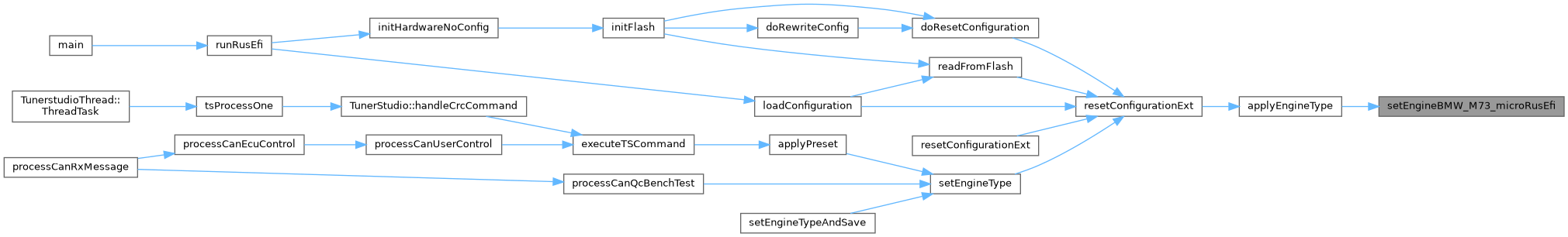

Here is the caller graph for this function:

Go to the source code of this file.
