canam.h File Reference

Functions
void	setMaverickX3 ()

Function Documentation

setMaverickX3()

void setMaverickX3

(

)

Definition at line 14 of file canam.cpp.

                     {
    strcpy(engineConfiguration->engineMake, "Rotax");
    strcpy(engineConfiguration->engineCode, "900 ACE");

    engineConfiguration->cylindersCount = 3;
    engineConfiguration->firingOrder = FO_1_2_3;
    engineConfiguration->displacement = 0.9;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;
// ?      engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
      engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;

    // portion of this file was generated by TuneCanTool.java
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_2;
    engineConfiguration->vvtMode[0] = VVT_SINGLE_TOOTH;
    engineConfiguration->isForcedInduction = true;
    engineConfiguration->vvtOffsets[0] = 116;
    engineConfiguration->injector.flow = 320;
    engineConfiguration->etbIdleThrottleRange = 10;

    engineConfiguration->iacByTpsHoldTime = 2;
    engineConfiguration->iacByTpsDecayTime = 2;
    engineConfiguration->iacByTpsTaper = 5;
    engineConfiguration->useIdleTimingPidControl = true;
    engineConfiguration->idleTimingSoftEntryTime = 1;

    engineConfiguration->tpsAccelLookback = 0.3;
    engineConfiguration->tpsAccelEnrichmentThreshold = 12;
    engineConfiguration->tpsDecelEnleanmentThreshold = 7;
    engineConfiguration->tpsAccelFractionPeriod = 3;

    engineConfiguration->isBoostControlEnabled = true;

    engineConfiguration->idleTimingPid.dFactor = 0.0005;
    engineConfiguration->idleTimingPid.minValue = -5;
    engineConfiguration->idleTimingPid.maxValue = 5;
    engineConfiguration->fanOnTemperature = 87;
    engineConfiguration->fanOffTemperature = 82;
    engineConfiguration->disableFan1WhenStopped = true;
    engineConfiguration->disableFan2WhenStopped = true;
    engineConfiguration->fan2ExtraIdle = 0;
    engineConfiguration->idlePidDeactivationTpsThreshold = 2;
    engineConfiguration->useSeparateAdvanceForIdle = true;
    engineConfiguration->vvtControlMinRpm = 2000;

    engineConfiguration->startButtonSuppressOnStartUpMs = 1000;
    engineConfiguration->vssToothCount = 10;

    engineConfiguration->etb.pFactor = 12.0794;
    engineConfiguration->etb.iFactor = 213.349;
    engineConfiguration->etb.dFactor = 0.113607;
    engineConfiguration->disableEtbWhenEngineStopped = true;

      cannedsparkDwellValues();
      canneddwellVoltageCorrValues();
    cannedignitionRpmBins();
    cannedignitionLoadBins();
    cannedidleAdvanceBins();
    cannedidleAdvance();
    cannedveRpmBins();
    cannedveLoadBins();
    cannedboostRpmBins();
    cannedpedalToTpsRpmBins();
      cannedcltIdleRpm();
        cannedcltIdleCorr();
    cannedcltCrankingCorr();




      setPPSCalibration(0.25, 1.49, 0.49, 2.98);
      // todo: matches Hyundai TODO extract method?
      setTPS1Calibration(98, 926, 891, 69);

#if HW_PROTEUS && EFI_PROD_CODE
    engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_6;
    engineConfiguration->vehicleSpeedSensorInputPin = PROTEUS_DIGITAL_5;
    engineConfiguration->auxAnalogInputs[0] = PROTEUS_IN_ANALOG_VOLT_4;
    setProteusEtbIO();
    engineConfiguration->starterControlPin = Gpio::PROTEUS_LS_14;
    engineConfiguration->startStopButtonPin = PROTEUS_IN_AV_6_DIGITAL;

    engineConfiguration->boostControlPin = Gpio::PROTEUS_LS_16;

    gppwm_channel *accRelayPwm = &engineConfiguration->gppwm[1];
    accRelayPwm->pin = Gpio::PROTEUS_LS_4;

    engineConfiguration->luaDigitalInputPins[2] = PROTEUS_IN_AV_10_DIGITAL;
    engineConfiguration->luaDigitalInputPins[3] = PROTEUS_IN_AV_8_DIGITAL;
#endif // HW_PROTEUS

    engineConfiguration->gppwm[0].pwmFrequency = 0;
    engineConfiguration->gppwm[0].dutyIfError = 100;
    engineConfiguration->gppwm[0].rpmAxis = GPPWM_Iat;
    engineConfiguration->gppwm[0].loadAxis = GPPWM_Map;
    strcpy(engineConfiguration->gpPwmNote[1], "Acc Relay");


#if HW_PROTEUS
    #include "canam_2021.lua"
#endif // HW_PROTEUS

}

Referenced by applyEngineType().

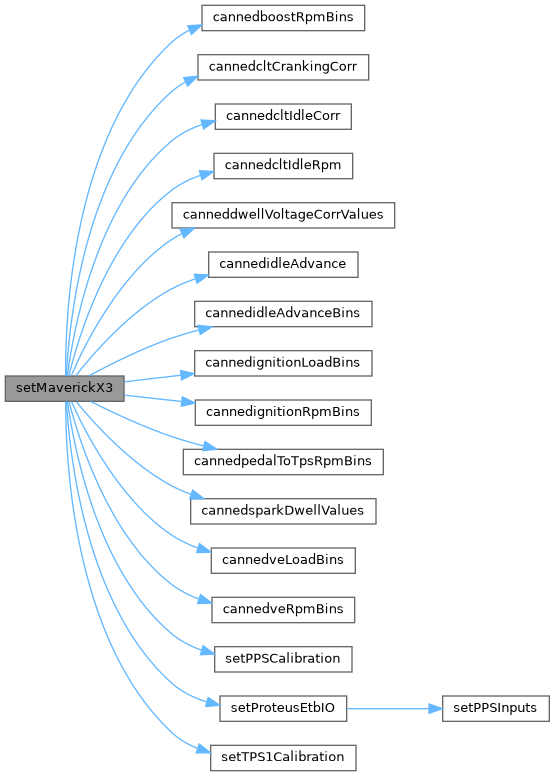

Here is the call graph for this function:

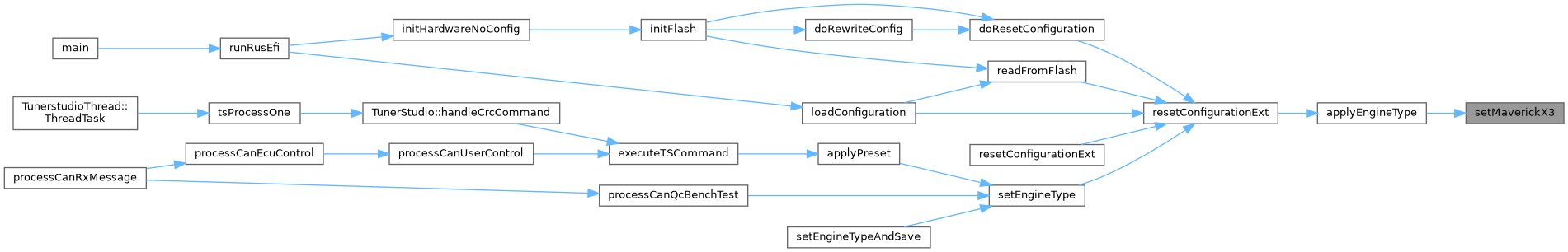

Here is the caller graph for this function:

Go to the source code of this file.
