board_configuration.cpp File Reference

Functions
Gpio	getWarningLedPin ()
Gpio	getRunningLedPin ()
Gpio	getCommsLedPin ()
static void	cypressBoardDefaultConfiguration ()
void	setAdcChannelOverrides ()
void	setup_custom_board_overrides ()

Function Documentation

cypressBoardDefaultConfiguration()

static void cypressBoardDefaultConfiguration ( )

static

!!!!!!!!!!!!!!!!!!

Definition at line 27 of file board_configuration.cpp.

                                               {
    setCrankOperationMode();

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_WASTED_SPARK;
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SIMULTANEOUS;

    engineConfiguration->map.sensor.type = MT_MPX4250A;

    engineConfiguration->idleStepperReactionTime = 10;
    engineConfiguration->stepperDirectionPinMode = OM_INVERTED;

    engineConfiguration->useLinearCltSensor = true;
    // todo:
    engineConfiguration->clt.config.resistance_1 = 0;
    engineConfiguration->clt.config.tempC_1 = -40.0f;
    engineConfiguration->clt.config.resistance_2 = 5.0f;
    engineConfiguration->clt.config.tempC_2 = 120.0f,
    engineConfiguration->clt.config.bias_resistor = 3300;

    engineConfiguration->tpsMin = convertVoltageTo10bitADC(0.250);
    engineConfiguration->tpsMax = convertVoltageTo10bitADC(4.538);
    engineConfiguration->tpsErrorDetectionTooLow = -10; // -10% open
    engineConfiguration->tpsErrorDetectionTooHigh = 110; // 110% open

    engineConfiguration->mapMinBufferLength = 4;

    engineConfiguration->map.sensor.hwChannel = EFI_ADC_13;
    engineConfiguration->clt.adcChannel = EFI_ADC_26;
    engineConfiguration->iat.adcChannel = EFI_ADC_27;
    engineConfiguration->tps1_1AdcChannel = EFI_ADC_3;
    engineConfiguration->afr.hwChannel = EFI_ADC_4;
    engineConfiguration->vbattAdcChannel = EFI_ADC_2;

    engineConfiguration->triggerInputPins[0] = Gpio::B0;

#if 0

    // todo:
    int i;
    for (i = 0; i < MAX_CYLINDER_COUNT; i++)
        engineConfiguration->injectionPins[i] = Gpio::Unassigned;
    for (i = 0; i < MAX_CYLINDER_COUNT; i++)
        engineConfiguration->ignitionPins[i] = Gpio::Unassigned;

    engineConfiguration->adcVcc = 5.0f;
    engineConfiguration->analogInputDividerCoefficient = 1;
#endif

    //!!!!!!!!!!!!!!!!!!!
    //engineConfiguration->isFastAdcEnabled = false;
}

Referenced by setup_custom_board_overrides().

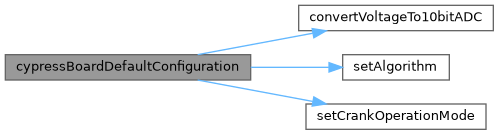

Here is the call graph for this function:

Here is the caller graph for this function:

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 22 of file board_configuration.cpp.

                      {
    // this board has no comms led
    return Gpio::Unassigned;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 18 of file board_configuration.cpp.

                        {
    return Gpio::Unassigned;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 13 of file board_configuration.cpp.

                        {
    // this board has no warning led
    return Gpio::Unassigned;
}

setAdcChannelOverrides()

void setAdcChannelOverrides

(

void

)

Definition at line 85 of file board_configuration.cpp.

                              {
    addAdcChannelForTrigger();
}

Referenced by configureInputs().

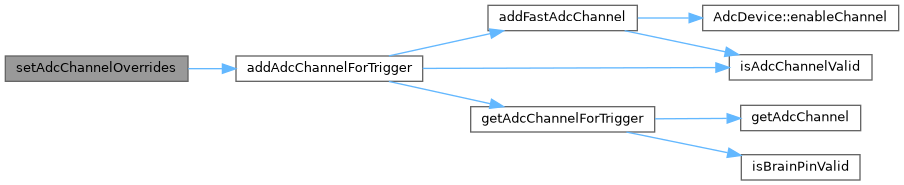

Here is the call graph for this function:

Here is the caller graph for this function:

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 89 of file board_configuration.cpp.

                                    {
    custom_board_ConfigOverrides = cypressBoardDefaultConfiguration;
}

Here is the call graph for this function:

Go to the source code of this file.
