default_cranking.cpp File Reference

Functions
void	setDefaultCranking ()

Function Documentation

setDefaultCranking()

void setDefaultCranking

(

)

Definition at line 6 of file default_cranking.cpp.

                          {
    engineConfiguration->cranking.rpm = 550;

    // Fuel
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;

    // Ignition
    engineConfiguration->ignitionDwellForCrankingMs = DEFAULT_CRANKING_DWELL_MS;
    engineConfiguration->crankingTimingAngle = DEFAULT_CRANKING_ANGLE;

    // IAC
    setArrayValues(config->cltCrankingCorr, 50);
    // should be 100 once tune is better
    setArrayValues(config->afterCrankingIACtaperDuration, 200);
    setLinearCurve(config->afterCrankingIACtaperDurationBins, CLT_CURVE_RANGE_FROM, 100, 1);

    engineConfiguration->isFasterEngineSpinUpEnabled = true;

    // After start enrichment
#if !EFI_UNIT_TEST
    // don't set this for unit tests, as it makes things more complicated to test
    setLinearCurve(config->postCrankingCLTBins, /*from*/-20, /*to*/80, 20);
    setLinearCurve(config->postCrankingDurationBins, /*from*/0, /*to*/150, 40);
    setTable(config->postCrankingFactor, 1.2f);
#endif

    setLinearCurve(config->crankingTpsCoef, /*from*/1, /*to*/1, 1);
    setLinearCurve(config->crankingTpsBins, 0, 100, 1);

    setLinearCurve(config->cltCrankingCorrBins, CLT_CURVE_RANGE_FROM, 100, 1);
    setLinearCurve(config->cltCrankingCorr, 50, 50, 1); // now as % of idle valve/etb

#if CRANKING_CURVE_SIZE == 8
    // Cranking temperature compensation
    static const float crankingCoef[] = {
        2.8,
        2.2,
        1.8,
        1.55,
        1.3,
        1.1,
        1.0,
        1.0
    };
    copyArray(config->crankingFuelCoef,     crankingCoef);
    copyArray(config->crankingFuelCoefE100, crankingCoef);

    // Deg C
    static const float crankingBins[] = {
        -20,
        -10,
        5,
        20,
        35,
        50,
        65,
        90
    };
    copyArray(config->crankingFuelBins, crankingBins);
#endif
    // Cranking cycle compensation

    setTable(config->crankingCycleBaseFuel, 27.0f);
    setLinearCurve(config->crankingCycleFuelCltBins, 0, 60, 1);

    // X values are simply counting up cycle number starting at 1
    for (size_t i = 0; i < efi::size(config->crankingCycleBins); i++) {
        config->crankingCycleBins[i] = i + 1;
    }

    // Cranking ignition timing
    setArrayValues(config->crankingAdvance, 0);

    static const float advanceBins[] = { 0, 200, 400, 1000 };
    copyArray(config->crankingAdvanceBins, advanceBins);

    engineConfiguration->useTLE8888_cranking_hack = true;
}

Referenced by setDefaultEngineConfiguration().

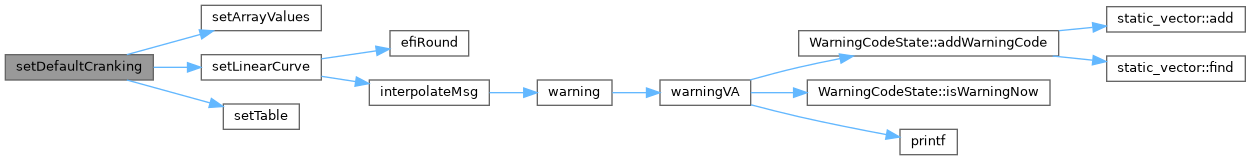

Here is the call graph for this function:

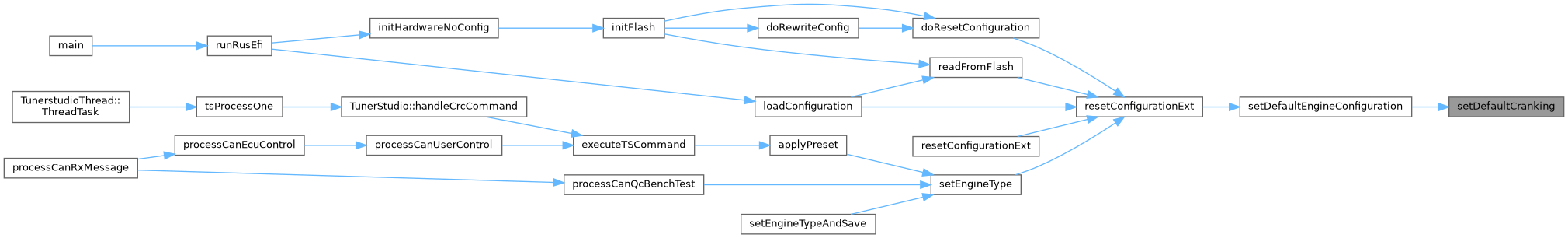

Here is the caller graph for this function:

Go to the source code of this file.
