dodge_ram.h File Reference

Functions
void	setDodgeRam1996 ()

Function Documentation

setDodgeRam1996()

void setDodgeRam1996

(

)

Definition at line 15 of file dodge_ram.cpp.

                       {
    setFrankensoConfiguration();

    engineConfiguration->trigger.type = trigger_type_e::TT_DODGE_RAM;
    engineConfiguration->injector.flow = 243.6; // 23.2lb/h
    engineConfiguration->map.sensor.type = MT_DODGE_NEON_2003;

    //Base engine setting
    engineConfiguration->cylindersCount = 8;
    engineConfiguration->firingOrder = FO_1_8_4_3_6_5_7_2;
    engineConfiguration->displacement = 5.2;

    // set global_trigger_offset_angle -50
    engineConfiguration->globalTriggerAngleOffset = -50;

    setDodgeSensor(&engineConfiguration->clt, 2700);
    setDodgeSensor(&engineConfiguration->iat, 2700);

    engineConfiguration->useStepperIdle = true;
}

Referenced by applyEngineType().

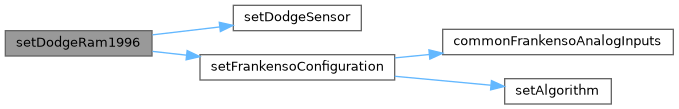

Here is the call graph for this function:

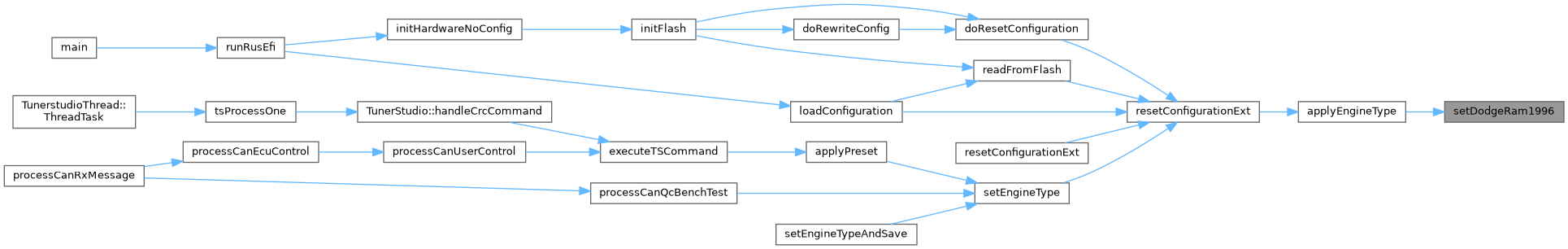

Here is the caller graph for this function:

Go to the source code of this file.
