board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	alphax_8chan_reva_boardInitHardware ()
static void	customBoardOnConfigurationChange (engine_configuration_s *)
static void	alphax_8chan_reva_boardConfigOverrides ()
void	set8chanDefaultETBPins ()
static void	alphax_8chan_reva_boardDefaultConfiguration ()
void	boardPrepareForStop ()
int	getBoardMetaOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static OutputPin	alphaTachPullUp
static OutputPin	alphaTempPullUp
static OutputPin	alphaCrankPPullUp
static OutputPin	alpha2stepPullDown
static OutputPin	alphaCamPullDown
static OutputPin	alphaD2PullDown
static OutputPin	alphaD3PullDown
static OutputPin	alphaD4PullDown
static Gpio	OUTPUTS []

Function Documentation

alphax_8chan_reva_boardConfigOverrides()

static void alphax_8chan_reva_boardConfigOverrides ( )

static

Definition at line 99 of file board_configuration.cpp.

                                                     {
    setHellenVbatt();

    setHellenSdCardSpi2();

    setDefaultHellenAtPullUps();

    setHellenCan();
    setHellenCan2();
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_8chan_reva_boardDefaultConfiguration()

static void alphax_8chan_reva_boardDefaultConfiguration ( )

static

Definition at line 115 of file board_configuration.cpp.

                                                          {
    setInjectorPins();
    setIgnitionPins();

  set8chanDefaultETBPins();
    engineConfiguration->vvtPins[0] = Gpio::H144_OUT_PWM7;
    engineConfiguration->vvtPins[1] = Gpio::H144_OUT_PWM8;

    engineConfiguration->boardUseTempPullUp = true;

    engineConfiguration->mainRelayPin = Gpio::H144_OUT_IO10;
    engineConfiguration->fanPin = Gpio::H144_OUT_IO11;
    engineConfiguration->fuelPumpPin = Gpio::H144_OUT_IO12;
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_IO13;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK


    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
// ?    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; //1E - Check Engine Light
    engineConfiguration->vrThreshold[0].pin = Gpio::H144_OUT_PWM6;
    engineConfiguration->vrThreshold[1].pin = Gpio::H144_OUT_PWM4;

    hellenWbo();
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_8chan_reva_boardInitHardware()

static void alphax_8chan_reva_boardInitHardware ( )

static

Definition at line 72 of file board_configuration.cpp.

                                                  {
    setHellenEnPin(Gpio::H144_OUT_IO3);

    alphaTempPullUp.initPin("a-temp", Gpio::H144_OUT_IO4);
    alphaCrankPPullUp.initPin("a-crank-p", Gpio::H144_OUT_IO5);
    alphaTachPullUp.initPin("a-tach", Gpio::H144_OUT_IO6);
    alpha2stepPullDown.initPin("a-2step", Gpio::H144_OUT_IO7);
    alphaCamPullDown.initPin("a-cam", Gpio::H144_OUT_IO8);
    //alphaCamVrPullUp.initPin("a-cam-vr", Gpio::H144_OUT_IO9);
    alphaD2PullDown.initPin("a-d2", H_SPI3_SCK);
    alphaD3PullDown.initPin("a-d3", H_SPI3_MISO);
    alphaD4PullDown.initPin("a-d4", H_SPI3_MOSI);
    //alphaD5PullDown.initPin("a-d5", Gpio::H144_LS_8);
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

boardPrepareForStop()

void boardPrepareForStop

(

)

Definition at line 147 of file board_configuration.cpp.

                           {
    // Wake on the CAN RX pin
    palEnableLineEvent(PAL_LINE(GPIOD, 0), PAL_EVENT_MODE_RISING_EDGE);
}

customBoardOnConfigurationChange()

static void customBoardOnConfigurationChange ( engine_configuration_s *  )

static

Definition at line 87 of file board_configuration.cpp.

                                                                         {
    alphaTachPullUp.setValue(config->boardUseTachPullUp);
    alphaTempPullUp.setValue(config->boardUseTempPullUp);
    alphaCrankPPullUp.setValue(config->boardUseCrankPullUp);
    alpha2stepPullDown.setValue(config->boardUse2stepPullDown);
    alphaCamPullDown.setValue(config->boardUseCamPullDown);

    alphaD2PullDown.setValue(config->boardUseD2PullDown);
    alphaD3PullDown.setValue(config->boardUseD3PullDown);
    alphaD4PullDown.setValue(config->boardUseD4PullDown);
}

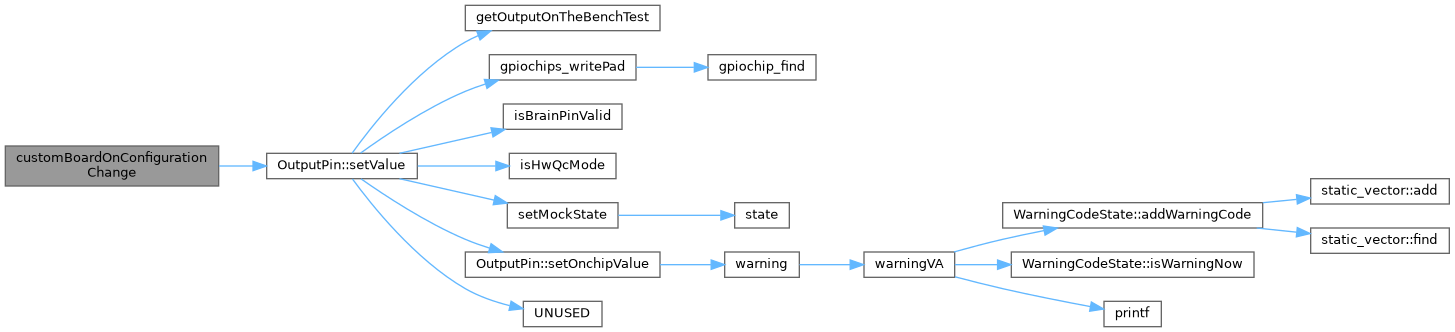

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 163 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 159 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

set8chanDefaultETBPins()

void set8chanDefaultETBPins

(

)

Definition at line 110 of file board_configuration.cpp.

                              {
    setupTLE9201IncludingStepper(/*controlPin*/Gpio::H144_OUT_PWM2, Gpio::H144_GP_IO1, Gpio::H144_GP_IO5);
    setupTLE9201IncludingStepper(/*controlPin*/Gpio::H144_GP_IO4, Gpio::H144_GP_IO3, Gpio::Unassigned, 1);
}

Referenced by alphax_8chan_defaultConfiguration(), alphax_8chan_reva_boardDefaultConfiguration(), and setStepperHw().

Here is the call graph for this function:

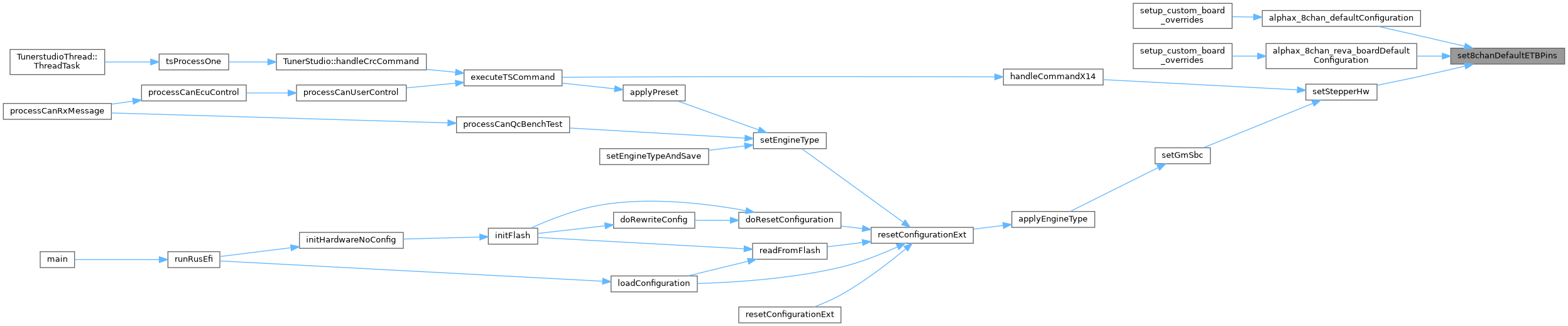

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 39 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_3;
    engineConfiguration->ignitionPins[3] = Gpio::H144_IGN_4;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 27 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;

    engineConfiguration->clutchDownPin = Gpio::Unassigned;
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
    engineConfiguration->malfunctionIndicatorPin = Gpio::Unassigned;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 167 of file board_configuration.cpp.

                                    {
    custom_board_InitHardware = alphax_8chan_reva_boardInitHardware;
    custom_board_DefaultConfiguration = alphax_8chan_reva_boardDefaultConfiguration;
    custom_board_ConfigOverrides = alphax_8chan_reva_boardConfigOverrides;

    custom_board_OnConfigurationChange = customBoardOnConfigurationChange;
}

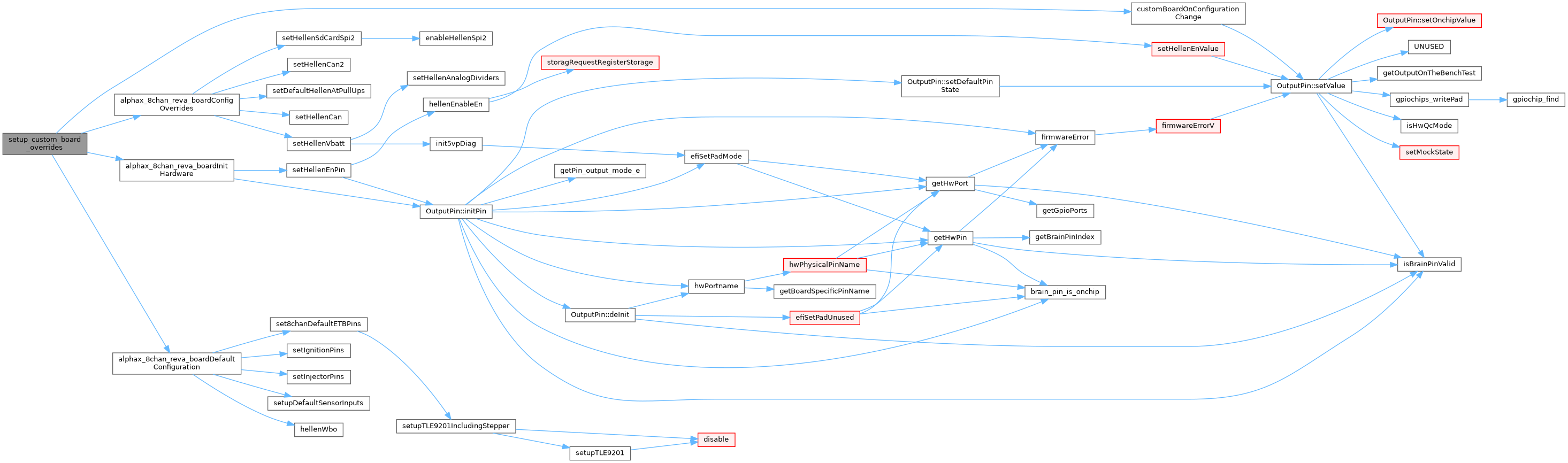

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 46 of file board_configuration.cpp.

                                       {
    // trigger inputs, hall
    engineConfiguration->triggerInputPins[0] = H144_USB1ID;
    engineConfiguration->triggerInputPins[1] = Gpio::H144_IN_CAM;
    engineConfiguration->camInputs[0] = Gpio::Unassigned;

    setTPS1Inputs(H144_IN_TPS, H144_IN_AUX1);

    setPPSInputs(H144_IN_PPS, H144_IN_AUX2);

    // random values to have valid config
    engineConfiguration->tps1SecondaryMin = 1000;
    engineConfiguration->tps1SecondaryMax = 0;


    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP2;
    engineConfiguration->baroSensor.type = MT_MPXH6400;
//  engineConfiguration->baroSensor.hwChannel = H144_IN_MAP3;

    engineConfiguration->afr.hwChannel = EFI_ADC_NONE;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Here is the call graph for this function:

Variable Documentation

alpha2stepPullDown

OutputPin alpha2stepPullDown

static

Definition at line 19 of file board_configuration.cpp.

alphaCamPullDown

OutputPin alphaCamPullDown

static

Definition at line 20 of file board_configuration.cpp.

alphaCrankPPullUp

OutputPin alphaCrankPPullUp

static

Definition at line 18 of file board_configuration.cpp.

alphaD2PullDown

OutputPin alphaD2PullDown

static

Definition at line 22 of file board_configuration.cpp.

alphaD3PullDown

OutputPin alphaD3PullDown

static

Definition at line 23 of file board_configuration.cpp.

alphaD4PullDown

OutputPin alphaD4PullDown

static

Definition at line 24 of file board_configuration.cpp.

alphaTachPullUp

OutputPin alphaTachPullUp

static

Definition at line 16 of file board_configuration.cpp.

alphaTempPullUp

OutputPin alphaTempPullUp

static

Definition at line 17 of file board_configuration.cpp.

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
        Gpio::H144_LS_1,
        Gpio::H144_LS_2,
        Gpio::H144_LS_3,
        Gpio::H144_LS_4,
}

Definition at line 152 of file board_configuration.cpp.

                        {
        Gpio::H144_LS_1,
        Gpio::H144_LS_2,
        Gpio::H144_LS_3,
        Gpio::H144_LS_4,
};
