board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen_MiataNB1_boardConfigOverrides ()
static void	hellen_MiataNB1_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

hellen_MiataNB1_boardConfigOverrides()

static void hellen_MiataNB1_boardConfigOverrides ( )

static

Definition at line 56 of file board_configuration.cpp.

                                                   {
    setHellenVbatt();

    setHellenSdCardSpi2();

    setDefaultHellenAtPullUps();

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

hellen_MiataNB1_boardDefaultConfiguration()

static void hellen_MiataNB1_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 73 of file board_configuration.cpp.

                                                        {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->boostControlPin = Gpio::H144_LS_6;
    engineConfiguration->acSwitch = Gpio::H144_ORIGINAL_MCU_IN_D_AUX3;
    engineConfiguration->acRelayPin = Gpio::H144_OUT_IO6;
    engineConfiguration->fuelPumpPin = Gpio::G2;    // OUT_IO9
    engineConfiguration->idle.solenoidPin = Gpio::D14;  // OUT_PWM5
    engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->mainRelayPin = Gpio::I2;   // OUT_LOW3
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_PWM1;
    engineConfiguration->alternatorControlPin = Gpio::H144_OUT_PWM7;
    engineConfiguration->fan2Pin = Gpio::H144_OUT_IO2;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK



    engineConfiguration->clutchDownPin = Gpio::H144_IN_D_2;
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
// ?    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; //1E - Check Engine Light
}

Referenced by setup_custom_board_overrides().

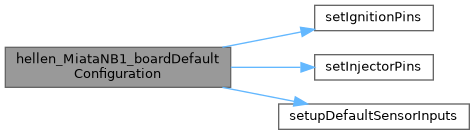

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 29 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;

    engineConfiguration->clutchDownPin = Gpio::C4; // Clutch switch input
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
    engineConfiguration->malfunctionIndicatorPin = Gpio::H144_OUT_IO8;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 106 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen_MiataNB1_boardDefaultConfiguration;
    custom_board_ConfigOverrides = hellen_MiataNB1_boardConfigOverrides;
}

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 36 of file board_configuration.cpp.

                                       {
    // trigger inputs, hall
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CRANK;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    engineConfiguration->camInputs[0] = Gpio::H144_IN_CAM;

    engineConfiguration->tps1_1AdcChannel = H144_IN_TPS;

    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_11;

    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Go to the source code of this file.
