mazda_miata_vvt.h File Reference

Functions
void	setMiataNB2_Proteus_TCU ()
void	setMazdaMiataNB1 ()
void	setMazdaMiataNB2 ()
void	setMazdaMiataNB2_36 ()

Function Documentation

setMazdaMiataNB1()

void setMazdaMiataNB1

(

)

Definition at line 458 of file mazda_miata_vvt.cpp.

                        {
    setCommonMazdaNB();
    strcpy(engineConfiguration->engineCode, "NB1");

    engineConfiguration->injector.flow = 256;

    // Vehicle speed/gears
    engineConfiguration->totalGearsCount = 5;
    engineConfiguration->gearRatio[0] = 3.136;
    engineConfiguration->gearRatio[1] = 1.888;
    engineConfiguration->gearRatio[2] = 1.330;
    engineConfiguration->gearRatio[3] = 1.000;
    engineConfiguration->gearRatio[4] = 0.814;

    // These may need to change based on your real car
    engineConfiguration->driveWheelRevPerKm = 551;
    engineConfiguration->finalGearRatio = 4.3;
}

Referenced by applyEngineType().

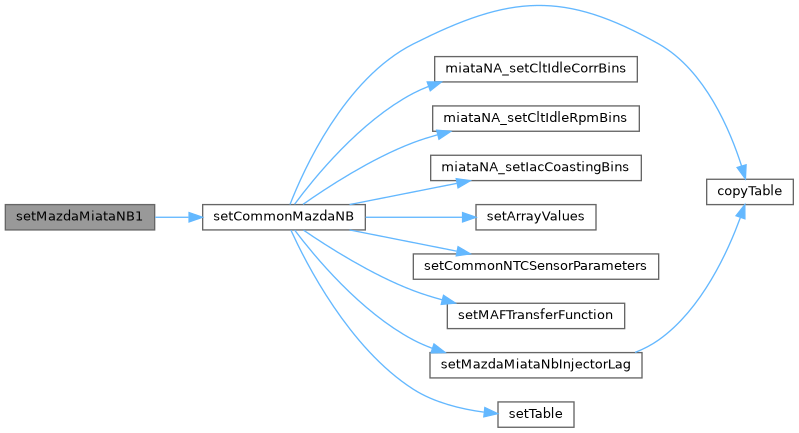

Here is the call graph for this function:

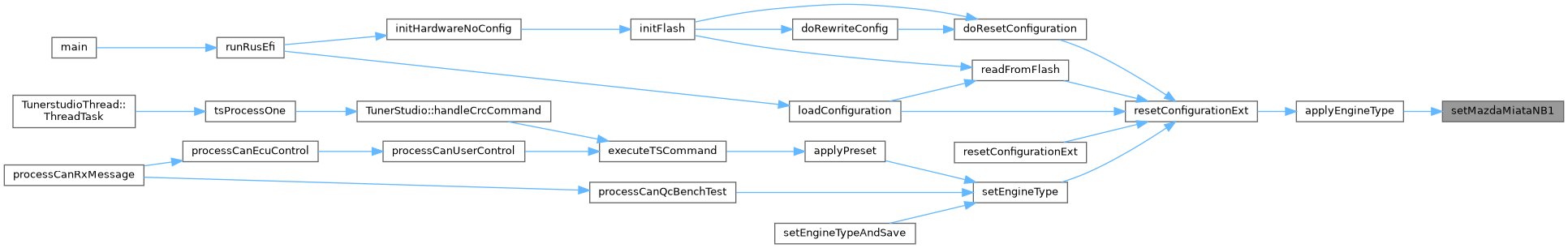

Here is the caller graph for this function:

setMazdaMiataNB2()

void setMazdaMiataNB2

(

)

set engine_type 69

Definition at line 477 of file mazda_miata_vvt.cpp.

                        {
    setMazdaMiataEngineNB2Defaults();
    strcpy(engineConfiguration->vehicleName, "H72 test");


    // set tps_min 90
    engineConfiguration->tpsMin = 110; // convert 12to10 bit (ADC/4)

}

Referenced by applyEngineType(), and setMazdaMiataNB2_36().

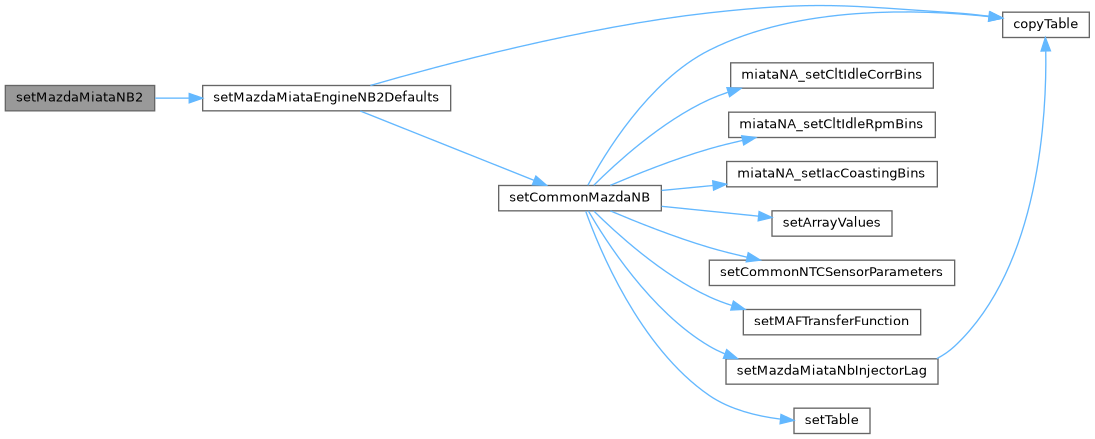

Here is the call graph for this function:

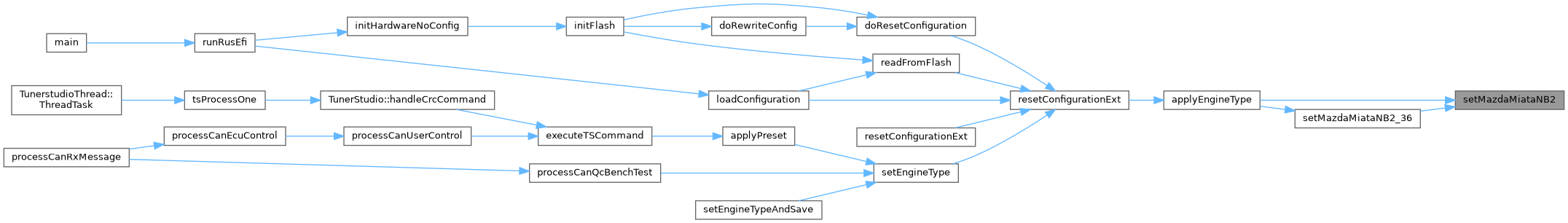

Here is the caller graph for this function:

setMazdaMiataNB2_36()

void setMazdaMiataNB2_36

(

)

Definition at line 487 of file mazda_miata_vvt.cpp.

                           {
    setMazdaMiataNB2();

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_1;
    engineConfiguration->globalTriggerAngleOffset = 76;
}

Referenced by applyEngineType().

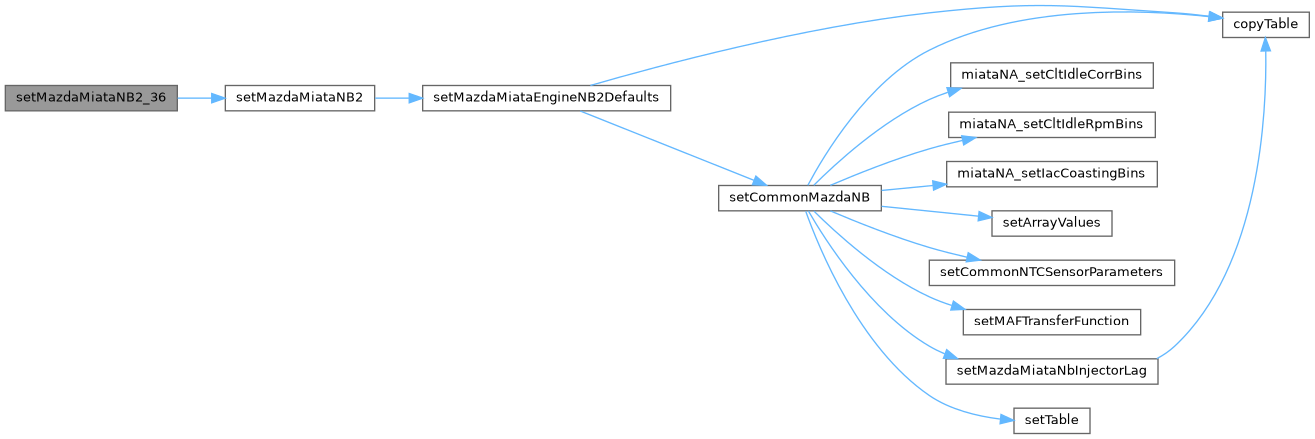

Here is the call graph for this function:

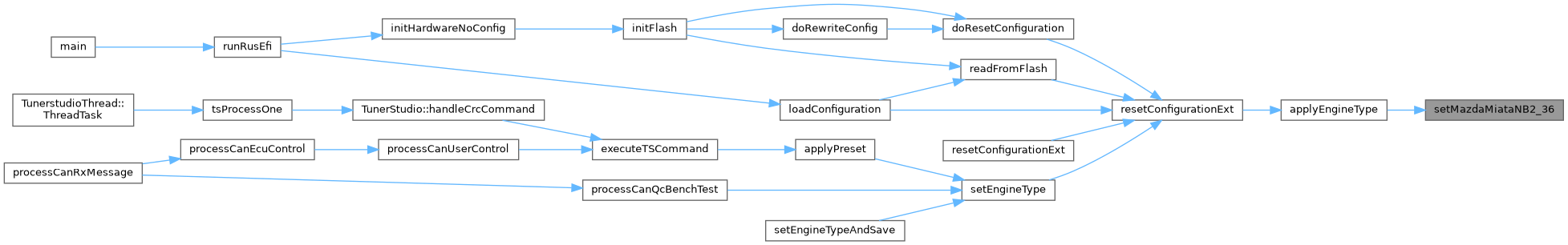

Here is the caller graph for this function:

setMiataNB2_Proteus_TCU()

void setMiataNB2_Proteus_TCU

(

)

https://wiki.rusefi.com/Mazda-Miata-2001 set engine_type 1

https://wiki.rusefi.com/HOWTO-TCU-A42DE-on-Proteus

Definition at line 402 of file mazda_miata_vvt.cpp.

                               {
    engineConfiguration->tcuEnabled = true;

    strcpy(engineConfiguration->engineCode, "NB2");
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_MAZDA);
    strcpy(engineConfiguration->vehicleName, "TCU test");

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
    engineConfiguration->trigger.customTotalToothCount = 10;
    engineConfiguration->trigger.customSkippedToothCount = 0;


    engineConfiguration->triggerInputPins[0] = Gpio::Unassigned;
    engineConfiguration->tcuInputSpeedSensorPin = PROTEUS_VR_1;

    engineConfiguration->vehicleSpeedSensorInputPin = PROTEUS_VR_2;

    engineConfiguration->driveWheelRevPerKm = 544;  // 205/50R15
    engineConfiguration->vssGearRatio = 4.3;
    engineConfiguration->vssToothCount = 22;

    // "Highside 2"
    engineConfiguration->tcu_solenoid[0] = Gpio::A8;
    // "Highside 1"
    engineConfiguration->tcu_solenoid[1] = Gpio::A9;

    // "Digital 1" green
    engineConfiguration->tcuUpshiftButtonPin = Gpio::C6;
    engineConfiguration->tcuUpshiftButtonPinMode = PI_PULLUP;
    // "Digital 6" white
    engineConfiguration->tcuDownshiftButtonPin = Gpio::E15;
    engineConfiguration->tcuDownshiftButtonPinMode = PI_PULLUP;

    // R
    config->tcuSolenoidTable[0][0] = 1;
    config->tcuSolenoidTable[0][1] = 0;
    // P/N
    config->tcuSolenoidTable[1][0] = 1;
    config->tcuSolenoidTable[1][1] = 0;
    // 1
    config->tcuSolenoidTable[2][0] = 1;
    config->tcuSolenoidTable[2][1] = 0;
    // 2
    config->tcuSolenoidTable[3][0] = 1;
    config->tcuSolenoidTable[3][1] = 1;
    // 3
    config->tcuSolenoidTable[4][0] = 0;
    config->tcuSolenoidTable[4][1] = 1;
    // 4
    config->tcuSolenoidTable[5][0] = 0;
    config->tcuSolenoidTable[5][1] = 0;

}

Referenced by applyEngineType().

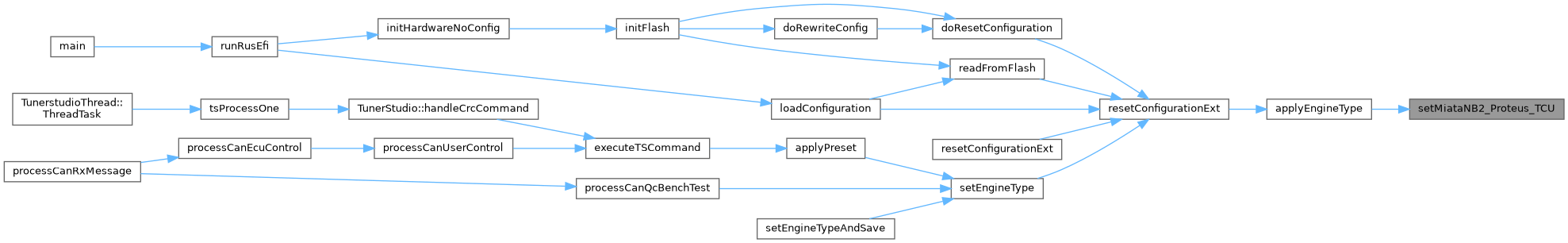

Here is the caller graph for this function:

Go to the source code of this file.
