nissan_vq.cpp File Reference

Functions
void	setHellen121nissanQR ()
static void	setNissanVqEngineConfig ()
void	setHellen121nissanVQ ()
void	setProteusNissanVQ ()
void	setHellen121nissanAltimaN16 ()

Function Documentation

setHellen121nissanAltimaN16()

void setHellen121nissanAltimaN16

(

)

Definition at line 80 of file nissan_vq.cpp.

                                   {
    // https://en.wikipedia.org/wiki/Nissan_QG_engine
    // https://en.wikipedia.org/wiki/N-VCT
    setHellen121nissanQR();
    engineConfiguration->displacement = 1.8;
    strcpy(engineConfiguration->engineCode, "N16");

}

Here is the call graph for this function:

setHellen121nissanQR()

void setHellen121nissanQR

(

)

Definition at line 16 of file nissan_vq.cpp.

                            {
    engineConfiguration->trigger.type = trigger_type_e::TT_NISSAN_QR25;

    setInline4();
    engineConfiguration->displacement = 2;
    strcpy(engineConfiguration->engineCode, "QR");

    engineConfiguration->camInputs[1 * CAMS_PER_BANK] = Gpio::Unassigned;

    engineConfiguration->vvtMode[0] = VVT_NISSAN_VQ;

    // we have this here and not in board_configuration.cpp so that unit test would get this value
    engineConfiguration->invertCamVVTSignal = true;

    engineConfiguration->vvtOffsets[0] = 157;

}

Referenced by applyEngineType(), and setHellen121nissanAltimaN16().

Here is the call graph for this function:

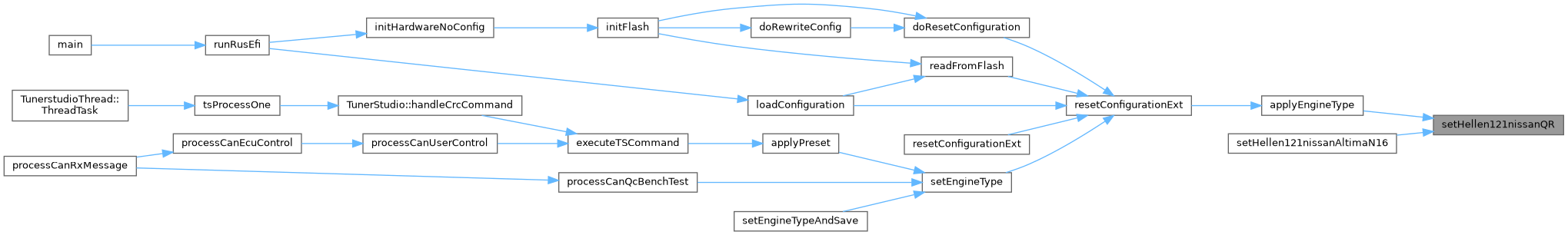

Here is the caller graph for this function:

setHellen121nissanVQ()

void setHellen121nissanVQ

(

)

Definition at line 59 of file nissan_vq.cpp.

                            {
    #include "nissan_vq.lua"

    setNissanVqEngineConfig();

    // we have this here and not in board_configuration.cpp so that unit test would get this value
    engineConfiguration->invertCamVVTSignal = true;

#if HW_HELLEN && EFI_PROD_CODE
    engineConfiguration->vvtPins[0 * CAMS_PER_BANK] = H176_LS_7;
    engineConfiguration->vvtPins[1 * CAMS_PER_BANK] = H176_LS_8;
#endif
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

setNissanVqEngineConfig()

static void setNissanVqEngineConfig ( )

static

Definition at line 34 of file nissan_vq.cpp.

                                      {
    setNissanMAF0031();
    engineConfiguration->trigger.type = trigger_type_e::TT_NISSAN_VQ35;

    engineConfiguration->cylindersCount = 6;
    engineConfiguration->firingOrder = FO_1_2_3_4_5_6;
    engineConfiguration->displacement = 4;
    strcpy(engineConfiguration->engineCode, "VQ");

    engineConfiguration->vvtMode[0] = VVT_NISSAN_VQ;

    engineConfiguration->vvtOffsets[0 * CAMS_PER_BANK] = NISSAN_VQ_VVT_OFFSET;
    engineConfiguration->vvtOffsets[1 * CAMS_PER_BANK] = NISSAN_VQ_VVT_OFFSET + NISSAN_VQ_CAM_OFFSET;

    // VVT closed loop
    engineConfiguration->auxPid[0].pFactor = 2;
    engineConfiguration->auxPid[0].iFactor = 0.5;
    engineConfiguration->auxPid[0].dFactor = 0.05;
    engineConfiguration->auxPid[0].offset = 50;
//  engineConfiguration->auxPid[0].minValue = 20;
//  engineConfiguration->auxPid[0].maxValue = 90;

    setTable(config->crankingCycleBaseFuel, 35);
}

Referenced by setHellen121nissanVQ(), and setProteusNissanVQ().

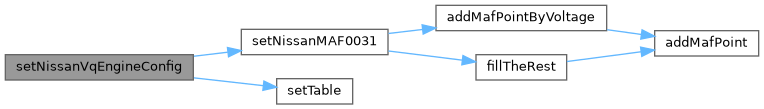

Here is the call graph for this function:

Here is the caller graph for this function:

setProteusNissanVQ()

void setProteusNissanVQ

(

)

Definition at line 73 of file nissan_vq.cpp.

                          {
    setNissanVqEngineConfig();

    // open question if that's a board setting or engine setting
    engineConfiguration->invertCamVVTSignal = true;
}

Referenced by applyEngineType().

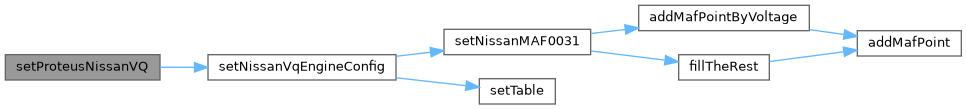

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
