slingshot.cpp File Reference

Functions
void	setSlingshot ()

Function Documentation

setSlingshot()

void setSlingshot

(

)

Definition at line 11 of file slingshot.cpp.

                    {
    strcpy(engineConfiguration->engineMake, "Polaris");
    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_4_3_2; // yes WOW that's not the most popular firing order!!!
    engineConfiguration->injectionMode = IM_SEQUENTIAL;

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_1;
    engineConfiguration->vvtMode[0] = VVT_BOSCH_QUICK_START;

    engineConfiguration->ignitionMode = IM_WASTED_SPARK; // just for now
    engineConfiguration->twoWireBatchIgnition = true;
    engineConfiguration->globalTriggerAngleOffset = 110;

    // GM TMAP is recommended
    setCustomMap(/*lowValue*/ 20, 0.3, 250, 4.65);

#if HW_PROTEUS
  engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
  engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_2;
  engineConfiguration->brakePedalPin = PROTEUS_DIGITAL_1;

  engineConfiguration->auxAnalogInputs[0] = PROTEUS_IN_ANALOG_VOLT_4; // gear position signal
  engineConfiguration->starterControlPin = Gpio::PROTEUS_LS_15;
    engineConfiguration->startStopButtonPin = PROTEUS_DIGITAL_5;
    engineConfiguration->startRequestPinInverted = true;

    setProteusEtbIO();
    engineConfiguration->invertCamVVTSignal = true;
#endif // HW_PROTEUS
}

Referenced by applyEngineType().

Here is the call graph for this function:

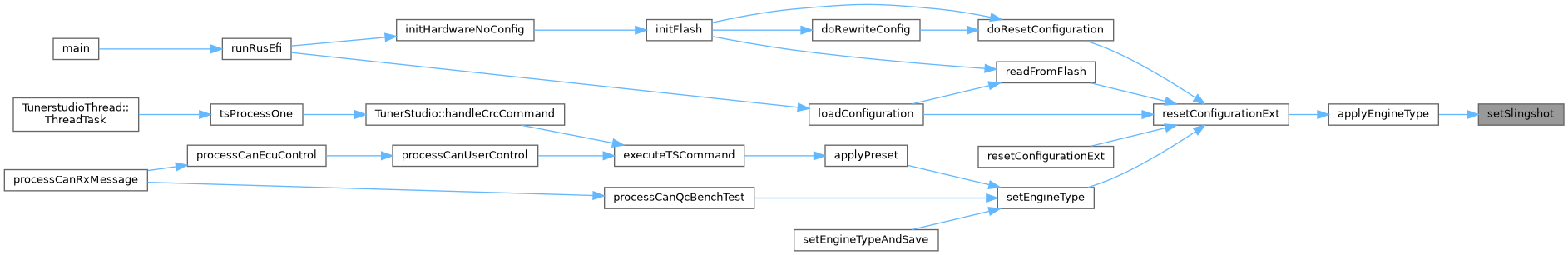

Here is the caller graph for this function:

Go to the source code of this file.
