ford_festiva.cpp File Reference

Functions
void	setFordEscortGt ()

Function Documentation

setFordEscortGt()

void setFordEscortGt

(

)

pin 1I/W9 - extra +5v set engine_type 14

Definition at line 23 of file ford_festiva.cpp.

                       {
    engineConfiguration->trigger.type = trigger_type_e::TT_MAZDA_DOHC_1_4;

    engineConfiguration->displacement = 1.839;
    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    // in case of DOHC distributor we have two signals
    engineConfiguration->triggerInputPins[0] = Gpio::C6;
    engineConfiguration->triggerInputPins[1] = Gpio::A5; // 2E White CKP
    // set global_trigger_offset_angle -37
    engineConfiguration->globalTriggerAngleOffset = -37;

    // todo: change to 15?
    // set cranking_timing_angle 3
    engineConfiguration->crankingTimingAngle = 3;

    setSingleCoilDwell();
    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;

    engineConfiguration->injectionPins[0] = Gpio::D3;
    engineConfiguration->injectionPins[1] = Gpio::E2;
}

Referenced by applyEngineType().

Here is the call graph for this function:

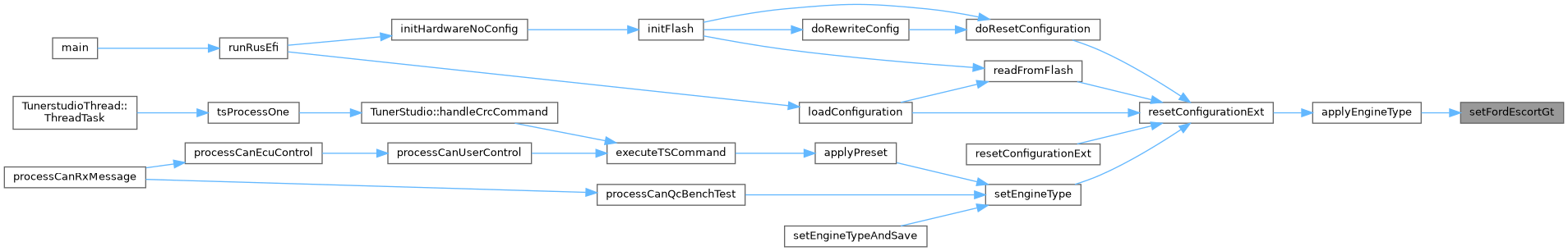

Here is the caller graph for this function:

Go to the source code of this file.
