board_configuration.cpp File Reference

Detailed Description

See https://rusefi.com/s/XX

Author

Andrey Belomutskiy, (c) 2012-2023

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen112_17_boardConfigOverrides ()
static void	hellen112_17_boardDefaultConfiguration ()
	Board-specific configuration defaults.
int	getBoardMetaOutputsCount ()
Gpio *	getBoardMetaOutputs ()
int	getBoardMetaDcOutputsCount ()
void	setup_custom_board_overrides ()

Variables
static Gpio	OUTPUTS []

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 153 of file board_configuration.cpp.

                                 {
    return 1;
}

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 149 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 145 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

hellen112_17_boardConfigOverrides()

static void hellen112_17_boardConfigOverrides ( )

static

Definition at line 46 of file board_configuration.cpp.

                                                {
    // rev A needs EN pin but newer revisions would potentially not use it
    setHellenMegaEnPin();
    setHellenVbatt();

    hellenMegaSdWithAccelerometer();
    configureHellenCanTerminator();
    setHellenCan();

    setDefaultHellenAtPullUps();

    engineConfiguration->triggerInputPins[0] = Gpio::MM100_IN_CRANK;
    engineConfiguration->camInputs[0] = Gpio::MM100_IN_D1;

    //ETB1
    // PWM pin
    engineConfiguration->etbIo[0].controlPin = Gpio::MM100_OUT_PWM6;
    // DIR pin
    engineConfiguration->etbIo[0].directionPin1 = Gpio::MM100_SPI2_MISO;
    // Disable pin
    engineConfiguration->etbIo[0].disablePin = Gpio::MM100_SPI2_MOSI;
}

Referenced by setup_custom_board_overrides().

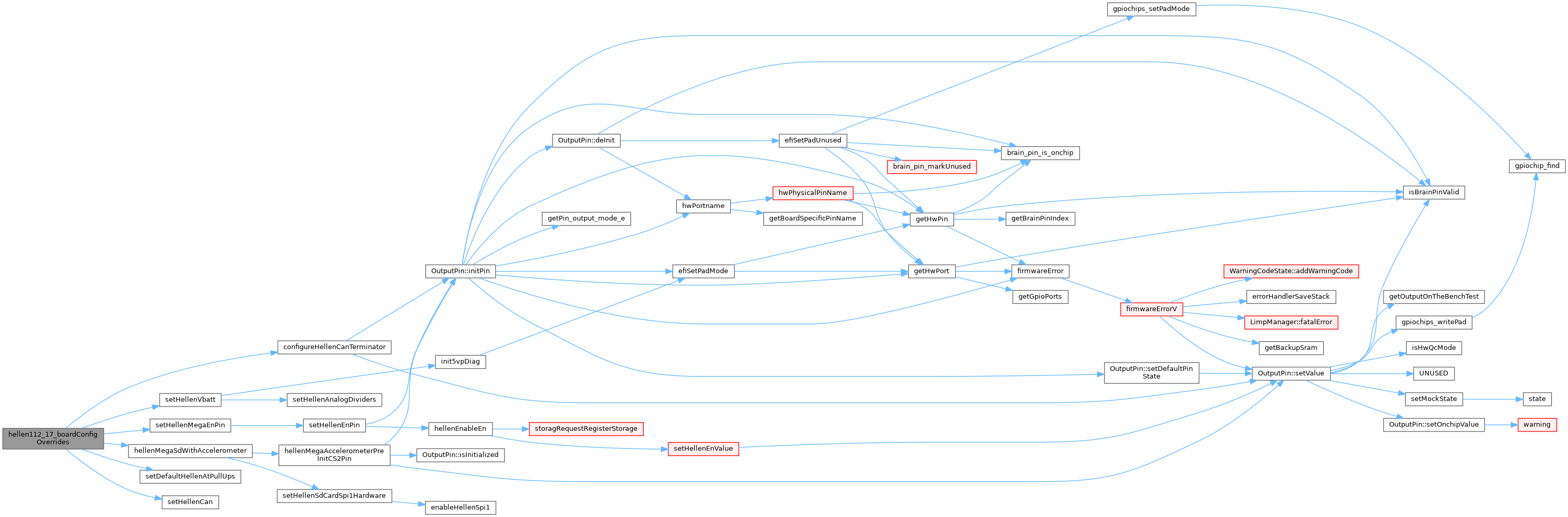

Here is the call graph for this function:

Here is the caller graph for this function:

hellen112_17_boardDefaultConfiguration()

static void hellen112_17_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 76 of file board_configuration.cpp.

                                                     {
    setInjectorPins();
    setIgnitionPins();

    // not override since sometimes we have issues?
//  setHellenMMbaro();

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->canTxPin = Gpio::MM100_CAN_TX;
    engineConfiguration->canRxPin = Gpio::MM100_CAN_RX;

    engineConfiguration->fuelPumpPin = Gpio::MM100_OUT_PWM5;
//  engineConfiguration->idle.solenoidPin = Gpio::H144_LS_6;
//  engineConfiguration->fanPin = Gpio::H144_OUT_IO12;
    engineConfiguration->mainRelayPin = Gpio::MM100_IGN8;
//  engineConfiguration->malfunctionIndicatorPin = Gpio::H144_OUT_IO7;

    // how come this is not denso 183?!
    setCustomMap(/*lowValue*/ 11.4, /*mapLowValueVoltage*/ 0.5, /*highValue*/ 170.7, 4.8);

//  engineConfiguration->brakePedalPin = Gpio::H144_IN_CAM;
//  engineConfiguration->acRelayPin = Gpio::H144_LS_5;
//    engineConfiguration->tachOutputPin = Gpio::H144_OUT_IO10;
    // A/C switch on k-line

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->etbFunctions[0] = DC_Throttle1;

    // Some sensible defaults for other options
    setCrankOperationMode();

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->injectorCompensationMode = ICM_FixedRailPressure;

    setCommonNTCSensorParameters(&engineConfiguration->clt);
    setCommonNTCSensorParameters(&engineConfiguration->iat);

    setTPS1Calibration(100, 650);
    //hellenWbo();
}

Referenced by setup_custom_board_overrides().

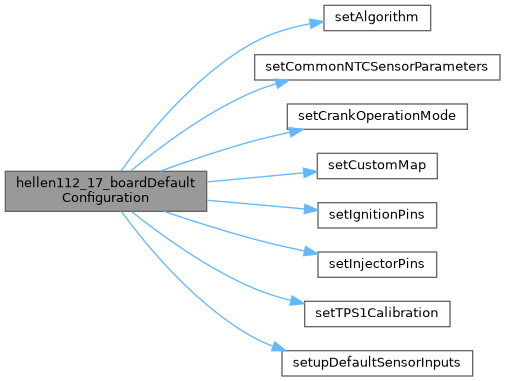

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 21 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::MM100_IGN1;
    engineConfiguration->ignitionPins[1] = Gpio::MM100_IGN2;
    engineConfiguration->ignitionPins[2] = Gpio::MM100_IGN3;
    engineConfiguration->ignitionPins[3] = Gpio::MM100_IGN4;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 14 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::MM100_INJ1;
    engineConfiguration->injectionPins[1] = Gpio::MM100_INJ2;
    engineConfiguration->injectionPins[2] = Gpio::MM100_INJ3;
    engineConfiguration->injectionPins[3] = Gpio::MM100_INJ4;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 157 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen112_17_boardDefaultConfiguration;
    custom_board_ConfigOverrides = hellen112_17_boardConfigOverrides;
}

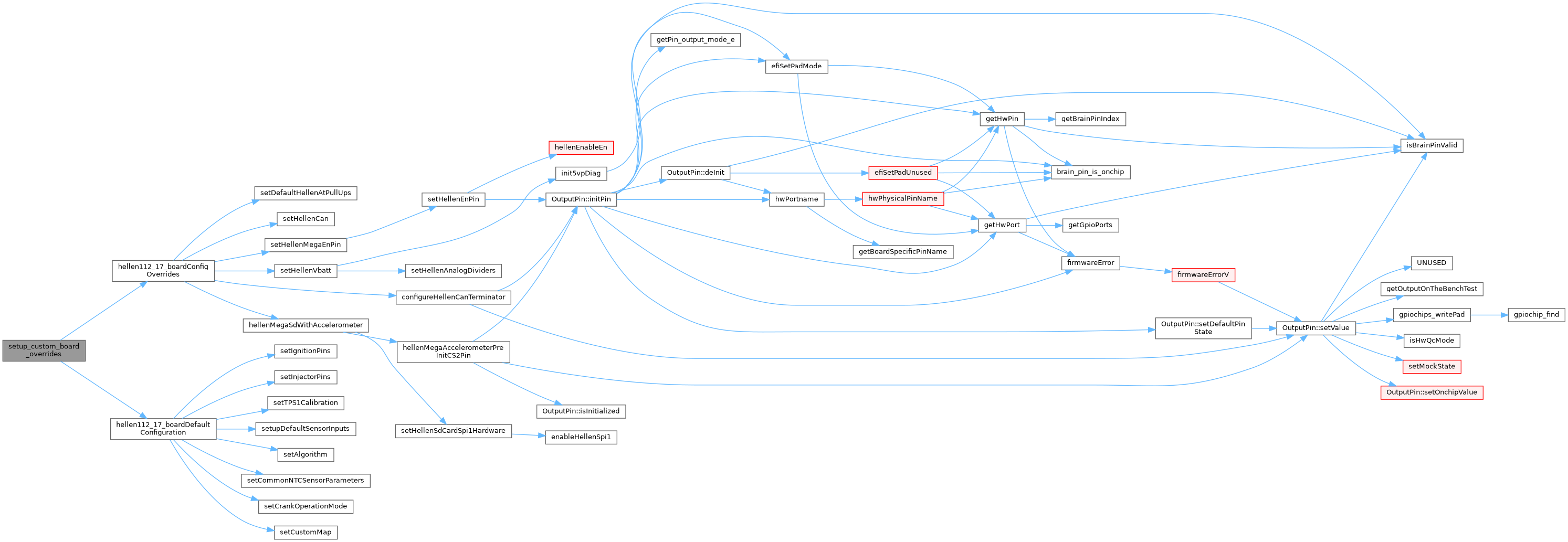

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 28 of file board_configuration.cpp.

                                       {
    engineConfiguration->vehicleSpeedSensorInputPin = Gpio::MM100_IN_D2;

    engineConfiguration->tps1_1AdcChannel = MM100_IN_TPS_ANALOG;
    engineConfiguration->tps1_2AdcChannel = MM100_IN_O2S_ANALOG;

    setPPSInputs(MM100_IN_PPS_ANALOG, MM100_IN_AUX2_ANALOG);


    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP1;

    engineConfiguration->clt.adcChannel = MM100_IN_CLT_ANALOG;

    engineConfiguration->iat.adcChannel = MM100_IN_IAT_ANALOG;
}

Here is the call graph for this function:

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
    Gpio::MM100_INJ6,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ7,
    Gpio::MM100_IGN8,
    Gpio::MM100_OUT_PWM3,
    Gpio::MM100_IGN7,
    Gpio::MM100_OUT_PWM4,
    Gpio::MM100_OUT_PWM5,
    Gpio::MM100_IGN5,
    Gpio::MM100_IGN6,
    Gpio::MM100_INJ8,
}

Definition at line 123 of file board_configuration.cpp.

                        {
    Gpio::MM100_INJ1, // 244 injector output 1
    Gpio::MM100_INJ2, // 242 injector output 2
    Gpio::MM100_INJ3, // 243 injector output 3
    Gpio::MM100_INJ4, // 245 injector output 4
    Gpio::MM100_IGN1, // 256 Coil 1
    Gpio::MM100_IGN2, // 253 Coil 2
    Gpio::MM100_IGN3, // 254 Coil 3
    Gpio::MM100_IGN4, // 255 Coil 4
    Gpio::MM100_INJ6, // 9 235 Low Side Output
    Gpio::MM100_INJ5, // 101 low side 1.5A output
    Gpio::MM100_INJ7, // 102 low side 1.5A output
    Gpio::MM100_IGN8, // 12 115 Main Relay
    Gpio::MM100_OUT_PWM3, // 131 Relay Output
    Gpio::MM100_IGN7, // 140 Relay Output
    Gpio::MM100_OUT_PWM4, // 141 Engine Radiator Fan
    Gpio::MM100_OUT_PWM5, // 142 Fuel Pump Relay
    Gpio::MM100_IGN5, // 151 relay output
    Gpio::MM100_IGN6, // 18 152 relay output
    Gpio::MM100_INJ8, // 246 low side 1.5A output
};

Go to the source code of this file.
