board_configuration.cpp File Reference

Detailed Description

See https://rusefi.com/s/XXX

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2020

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen88_boardConfigOverrides ()
static void	hellen88_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

hellen88_boardConfigOverrides()

static void hellen88_boardConfigOverrides ( )

static

Definition at line 55 of file board_configuration.cpp.

                                            {
    setHellenVbatt();

    // hellen88bmw uses L6205PD
    engineConfiguration->etbIo[0].directionPin1 = Gpio::H144_OUT_PWM2; // ETB+
    engineConfiguration->etbIo[0].directionPin2 = Gpio::H144_OUT_PWM3; // ETB-
    engineConfiguration->etbIo[0].controlPin = Gpio::H144_OUT_PWM1; // ETB_EN
    engineConfiguration->etb_use_two_wires = true;

    setHellenSdCardSpi3();

    engineConfiguration->clt.config.bias_resistor = 2700;
    engineConfiguration->iat.config.bias_resistor = 2700;
}

Referenced by setup_custom_board_overrides().

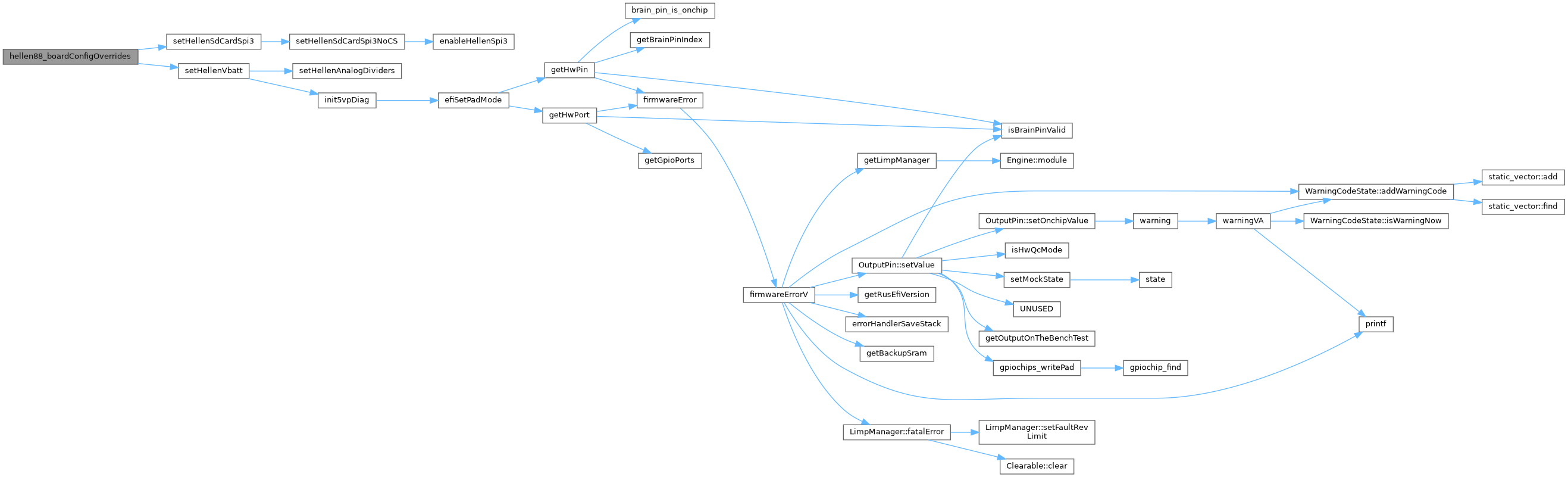

Here is the call graph for this function:

Here is the caller graph for this function:

hellen88_boardDefaultConfiguration()

static void hellen88_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 77 of file board_configuration.cpp.

                                                 {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;

    engineConfiguration->enableSoftwareKnock = true;
    engineConfiguration->canNbcType = CAN_BUS_NISSAN_VQ;

    setHellenCan();

    engineConfiguration->fuelPumpPin = Gpio::D12;   // OUT_IO9 // 113 Fuel Pump Relay
    engineConfiguration->idle.solenoidPin = Gpio::H144_OUT_PWM5;
//  engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->mainRelayPin = Gpio::H144_OUT_IO3; // pin: 111a
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_PWM7;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    // Some sensible defaults for other options
    setCrankOperationMode();

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    // Bosch VQ40 VR56 VK56 0280158007
    engineConfiguration->injector.flow = 296.2;

    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_BMW);

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK

    engineConfiguration->luaOutputPins[0] = Gpio::G5; // 104 ETB Relay

    setPPSCalibration(0.75, 4.45, 0.43, 2.20);

    // this calibration reminds me of VAG just flipped?
    engineConfiguration->tpsMin = 100;
    engineConfiguration->tpsMax = 889;

    engineConfiguration->tps1SecondaryMin = 891;
    engineConfiguration->tps1SecondaryMax = 102;
    hellenWbo();
}

Referenced by setup_custom_board_overrides().

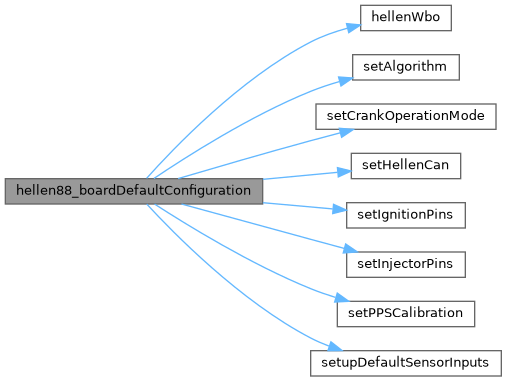

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 25 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_3;
    engineConfiguration->ignitionPins[3] = Gpio::H144_IGN_4;
    engineConfiguration->ignitionPins[4] = Gpio::H144_IGN_5;
    engineConfiguration->ignitionPins[5] = Gpio::H144_IGN_6;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 16 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;
    engineConfiguration->injectionPins[4] = Gpio::H144_LS_5;
    engineConfiguration->injectionPins[5] = Gpio::H144_LS_6;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 122 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen88_boardDefaultConfiguration;
    custom_board_ConfigOverrides = hellen88_boardConfigOverrides;
}

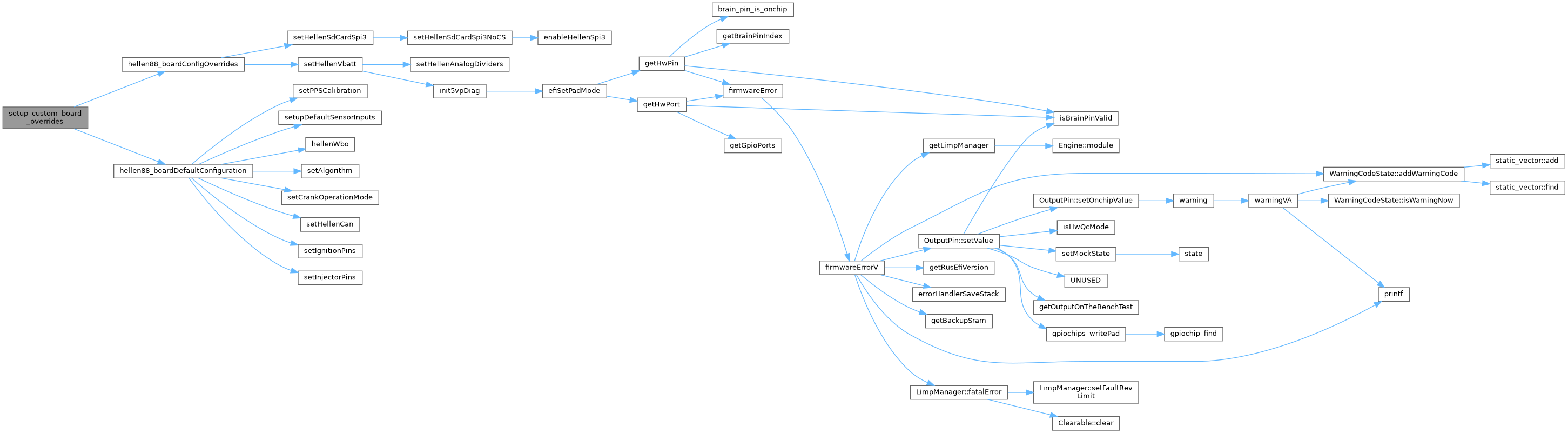

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 34 of file board_configuration.cpp.

                                       {
    // trigger inputs
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CRANK;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    // Direct hall-only cam input
    engineConfiguration->camInputs[0] = Gpio::H144_IN_CAM;

    engineConfiguration->tps1_1AdcChannel = H144_IN_TPS;
    engineConfiguration->tps1_2AdcChannel = H144_IN_AUX1;

    setPPSInputs(EFI_ADC_3, EFI_ADC_14);
    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_11;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Here is the call graph for this function:
