Functions
static void	initFluidPressure (LinearFunc &func, FunctionalSensor &sensor, const linear_sensor_s &cfg, float bandwidth)

static void	initSentLinearSensor (LinearFunc &func, FunctionalSensor &sensor, int in1, float out1, int in2, float out2, float min, float max)

void	initFluidPressure ()

void	deinitFluidPressure ()

void	sentPressureDecode (SentInput sentCh)

Variables
static LinearFunc	oilpSensorFunc

static FunctionalSensor	oilpSensor (SensorType::OilPressure, MS2NT(50))

static LinearFunc	fuelPressureFuncLow

static FunctionalSensor	fuelPressureSensorLow (SensorType::FuelPressureLow, MS2NT(50))

static LinearFunc	fuelPressureFuncHigh

static FunctionalSensor	fuelPressureSensorHigh (SensorType::FuelPressureHigh, MS2NT(50))

static ProxySensor	injectorPressure (SensorType::FuelPressureInjector)

static LinearFunc	acPressureFunc

static FunctionalSensor	acPressureSensor (SensorType::AcPressure, MS2NT(50))

static LinearFunc	auxLinear1Func

static FunctionalSensor	auxLinear1Sensor (SensorType::AuxLinear1, MS2NT(50))

static LinearFunc	auxLinear2Func

static FunctionalSensor	auxLinear2Sensor (SensorType::AuxLinear2, MS2NT(50))

static LinearFunc	auxLinear3Func

static FunctionalSensor	auxLinear3Sensor (SensorType::AuxLinear3, MS2NT(50))

static LinearFunc	auxLinear4Func

static FunctionalSensor	auxLinear4Sensor (SensorType::AuxLinear4, MS2NT(50))

Function Documentation

◆ deinitFluidPressure()

void deinitFluidPressure ( )

Definition at line 115 of file init_fluid_pressure.cpp.

                           {
    AdcSubscription::UnsubscribeSensor(oilpSensor, engineConfiguration->oilPressure.hwChannel);
    AdcSubscription::UnsubscribeSensor(fuelPressureSensorLow, engineConfiguration->lowPressureFuel.hwChannel);
    AdcSubscription::UnsubscribeSensor(fuelPressureSensorHigh, engineConfiguration->highPressureFuel.hwChannel);
    AdcSubscription::UnsubscribeSensor(auxLinear1Sensor, engineConfiguration->auxLinear1.hwChannel);
    AdcSubscription::UnsubscribeSensor(auxLinear2Sensor, engineConfiguration->auxLinear2.hwChannel);
    AdcSubscription::UnsubscribeSensor(auxLinear3Sensor, engineConfiguration->auxLinear3.hwChannel);
    AdcSubscription::UnsubscribeSensor(auxLinear4Sensor, engineConfiguration->auxLinear4.hwChannel);
}

Referenced by stopSensors().

Here is the call graph for this function:

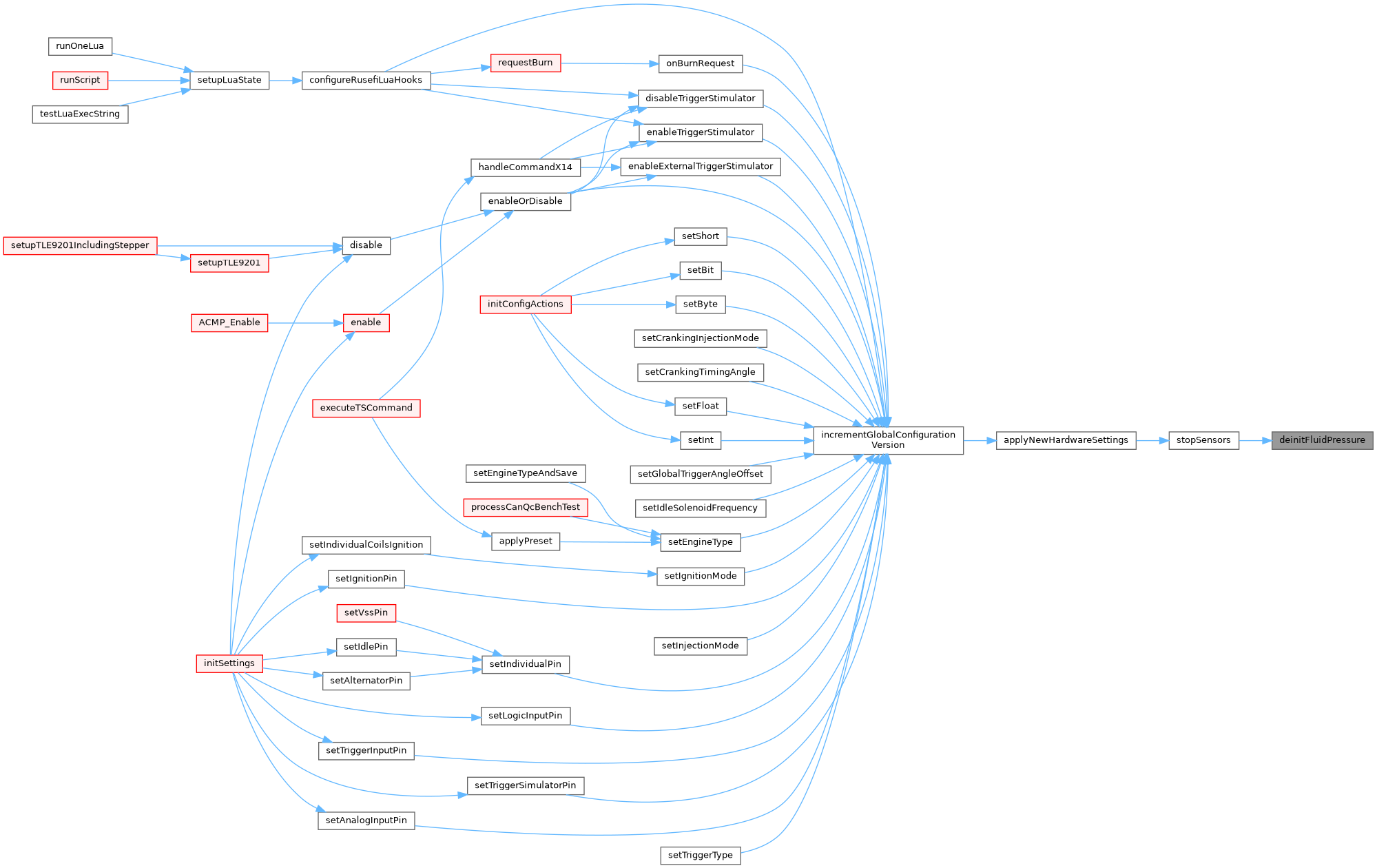

Here is the caller graph for this function:

◆ initFluidPressure() [1/2]

void initFluidPressure ( )

Definition at line 75 of file init_fluid_pressure.cpp.

                         {
    initFluidPressure(oilpSensorFunc, oilpSensor, engineConfiguration->oilPressure, 10);
    initFluidPressure(fuelPressureFuncLow, fuelPressureSensorLow, engineConfiguration->lowPressureFuel, 10);

#if EFI_SENT_SUPPORT
    if ((engineConfiguration->FuelHighPressureSentType != SentFuelHighPressureType::NONE) &&
        (engineConfiguration->FuelHighPressureSentInput != SentInput::NONE)) {
        if (engineConfiguration->FuelHighPressureSentType == SentFuelHighPressureType::GM_TYPE) {
            /* This sensor sends two pressure signals:
             * Sig0 occupies 3 first nibbles
             * Sig1 occupies next 3 nibbles
             * Signals are close, but not identical.
             * Sig0 shows about 197..198 at 1 Atm (open air) and 282 at 1000 KPa (10 Bar)
             * Sig1 shows abour 202..203 at 1 Atm (open air) and 283 at 1000 KPa (10 Bar)
             */
            initSentLinearSensor(fuelPressureFuncHigh, fuelPressureSensorHigh,
                200, BAR2KPA(1),
                283, BAR2KPA(10),
                BAR2KPA(0), BAR2KPA(1000) /* What is limit of this sensor? */);
        }
    } else
#endif
    {
        initFluidPressure(fuelPressureFuncHigh, fuelPressureSensorHigh, engineConfiguration->highPressureFuel, 100);
    }
    initFluidPressure(acPressureFunc, acPressureSensor, engineConfiguration->acPressure, 10);
    initFluidPressure(auxLinear1Func, auxLinear1Sensor, engineConfiguration->auxLinear1, 10);
    initFluidPressure(auxLinear2Func, auxLinear2Sensor, engineConfiguration->auxLinear2, 10);
    initFluidPressure(auxLinear3Func, auxLinear3Sensor, engineConfiguration->auxLinear3, 10);
    initFluidPressure(auxLinear4Func, auxLinear4Sensor, engineConfiguration->auxLinear4, 10);

    injectorPressure.setProxiedSensor(
        engineConfiguration->injectorPressureType == IPT_High
        ? SensorType::FuelPressureHigh
        : SensorType::FuelPressureLow
    );

    injectorPressure.Register();
}

Referenced by initFluidPressure(), and sensorStartUpOrReconfiguration().

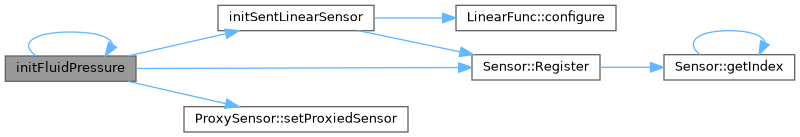

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initFluidPressure() [2/2]

static void initFluidPressure	(	LinearFunc &	func,
		FunctionalSensor &	sensor,
		const linear_sensor_s &	cfg,
		float	bandwidth
	)

static

Parameters

bandwidth Hertz, used by low pass filter in to analog subscribers

Definition at line 39 of file init_fluid_pressure.cpp.

                                                                                                                       {
    auto channel = cfg.hwChannel;

    // Only register if we have a sensor
    if (!isAdcChannelValid(channel)) {
        return;
    }

    float val1 = cfg.value1;
    float val2 = cfg.value2;

    // Limit to max given pressure - val1 or val2 could be larger
    // (sensor may be backwards, high voltage = low pressure)
    float greaterOutput = val1 > val2 ? val1 : val2;

    // Allow slightly negative output (-5kpa) so as to not fail the sensor when engine is off
    func.configure(cfg.v1, val1, cfg.v2, val2, /*minOutput*/ -5, greaterOutput);

    sensor.setFunction(func);

    AdcSubscription::SubscribeSensor(sensor, channel, bandwidth);

    sensor.Register();
}

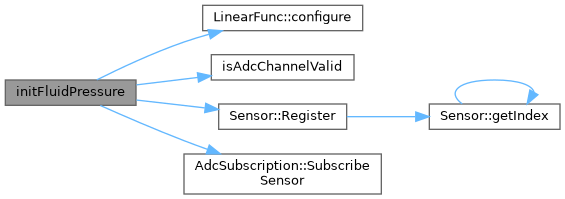

Here is the call graph for this function:

◆ initSentLinearSensor()

static void initSentLinearSensor	(	LinearFunc &	func,
		FunctionalSensor &	sensor,
		int	in1,
		float	out1,
		int	in2,
		float	out2,
		float	min,
		float	max
	)

static

Definition at line 65 of file init_fluid_pressure.cpp.

{
    func.configure(in1, out1, in2, out2, min, max);

    sensor.setFunction(func);

    sensor.Register();
}

Referenced by initFluidPressure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sentPressureDecode()

void sentPressureDecode ( SentInput sentCh )

Definition at line 130 of file init_fluid_pressure.cpp.

                                          {
    if (engineConfiguration->FuelHighPressureSentInput != sentCh) {
        return;
    }

    if (engineConfiguration->FuelHighPressureSentType == SentFuelHighPressureType::GM_TYPE) {
        uint16_t sig0, sig1;
        int ret = getSentValues(sentCh, &sig0, &sig1);

        if (ret) {
            return;
        }

        /* This sensor sends two pressure signals - average */
        fuelPressureSensorHigh.postRawValue(((float)sig0 + (float)sig1) / 2, getTimeNowNt());
    }
}
