board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen_MiataNB2_boardConfigOverrides ()
static void	hellen_MiataNB2_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

hellen_MiataNB2_boardConfigOverrides()

static void hellen_MiataNB2_boardConfigOverrides ( )

static

Definition at line 52 of file board_configuration.cpp.

                                                   {
    setHellenVbatt();

    if (engine->engineState.hellenBoardId == -1) {
        // Rev a-d use SPI3 for SD card
        setHellenSdCardSpi3();
    } else {
        // Revs E and later use SPI2 for SD card
        setHellenSdCardSpi2();
    }

    // NB2 still uses L6205PD
    engineConfiguration->etbIo[0].directionPin1 = Gpio::H144_OUT_PWM3; // ETB+
    engineConfiguration->etbIo[0].directionPin2 = Gpio::H144_OUT_PWM4; // ETB-
    engineConfiguration->etbIo[0].controlPin = Gpio::H144_OUT_PWM2; // ETB_EN
    engineConfiguration->etb_use_two_wires = true;

    setDefaultHellenAtPullUps();

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

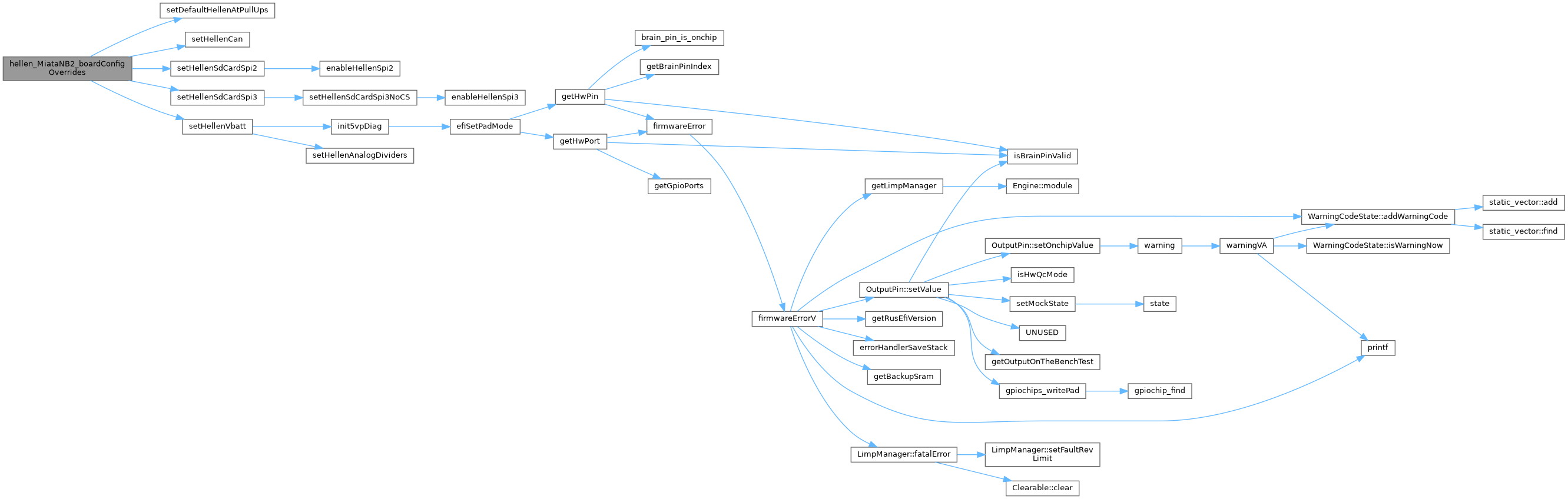

Here is the call graph for this function:

Here is the caller graph for this function:

hellen_MiataNB2_boardDefaultConfiguration()

static void hellen_MiataNB2_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 81 of file board_configuration.cpp.

                                                        {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->acRelayPin = Gpio::H15;
    engineConfiguration->acSwitch = Gpio::B0;
    engineConfiguration->acSwitchMode = PI_PULLUP;

    engineConfiguration->vehicleSpeedSensorInputPin = Gpio::H144_IN_VSS;
    engineConfiguration->clutchDownPin = Gpio::H144_IN_RES3;
    engineConfiguration->clutchDownPinMode = PI_INVERTED_DEFAULT;

    engineConfiguration->fuelPumpPin = Gpio::G2;    // OUT_IO9
    engineConfiguration->idle.solenoidPin = Gpio::D14;  // OUT_PWM5
    engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->fan2Pin = Gpio::D9;
    engineConfiguration->enableFan2WithAc = true;
    engineConfiguration->mainRelayPin = Gpio::I2;   // OUT_LOW3
    engineConfiguration->vvtPins[0] = Gpio::I0;    // 4R - VVT (O5)

    engineConfiguration->tachOutputPin = Gpio::D13; // 3O - TACH (PWM7)
    engineConfiguration->alternatorControlPin = Gpio::D15; // 3M - ALTERN (PWM6)


    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK



    hellenWbo();
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 24 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = H176_IGN_1; // 3F - IGN_1 (1&4)
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned ; // Gpio::E4
    engineConfiguration->ignitionPins[2] = Gpio::E5; // 3I - IGN_2 (2&3)
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned; // Gpio::E3
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::G7;
    engineConfiguration->injectionPins[1] = Gpio::G8;
    engineConfiguration->injectionPins[2] = Gpio::D11;
    engineConfiguration->injectionPins[3] = Gpio::D10;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 120 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen_MiataNB2_boardDefaultConfiguration;
    custom_board_ConfigOverrides = hellen_MiataNB2_boardConfigOverrides;
}

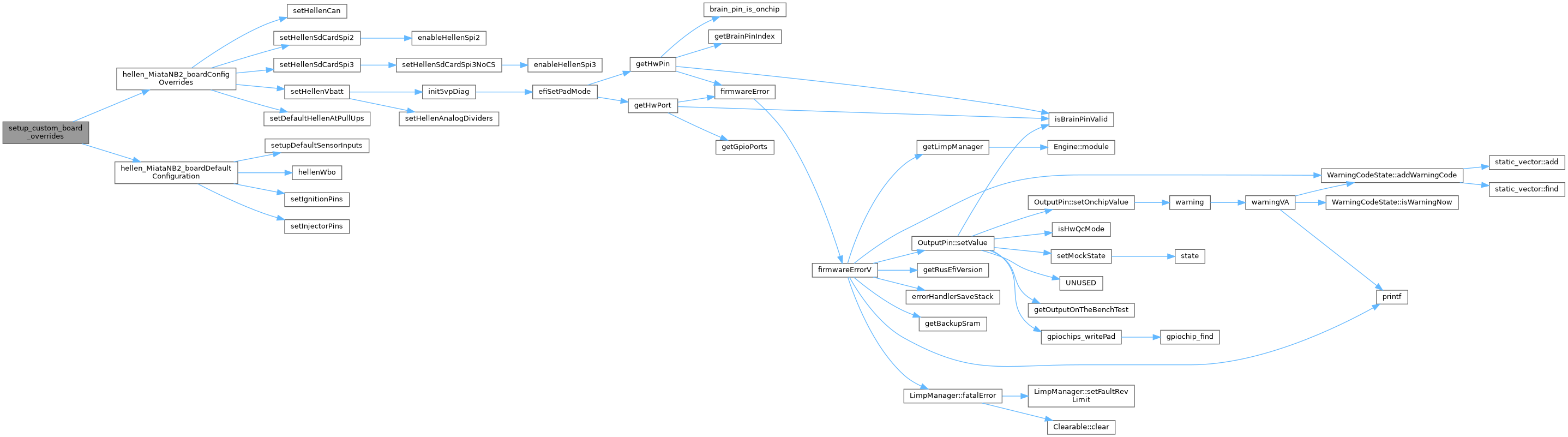

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 31 of file board_configuration.cpp.

                                       {
    // trigger inputs
    engineConfiguration->triggerInputPins[0] = Gpio::B1;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    // Direct hall-only cam input
    engineConfiguration->camInputs[0] = Gpio::A6;

    engineConfiguration->tps1_1AdcChannel = EFI_ADC_4;

    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_11;

    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Go to the source code of this file.
